LogiBLOX

Overview
Advantages of using LogiBLOX
LogiBLOX Modules

Overview

LogiBLOX is a graphical interactive tool for creating modules, such as counters, shift registers, and multiplexers. LogiBLOX includes both a library of generic modules and a set of tools for customizing them.

The modules created by LogiBLOX can be used in designs generated with schematic editors from Aldec, Viewlogic, Mentor Graphics, and Cadence, as well as third-party synthesis tools such as Synopsys FPGA Compiler, Xilinx Foundation Package, and Mentor Autologic.

LogiBLOX modules are used whenever you need a customized version of a standard function. For example, with a LogiBLOX counter, you start with a generic template for a counter and tailor its functionality to your needs. In contrast, a standard ready-made counter has a previously defined set of functions and in the case where you want a counter with specific capabilities, you would need to have available a library of different counters, one of which contains the functions you need.

Simulation of LogiBLOX modules can be performed using behavioral VHDL, Structural Verilog or Gate level EDIF models.

The LogiBLOX graphical user interface (GUI) is available directly from supported schematic editor packages. LogiBLOX also supports synthesis-based tools by either letting the synthesis tool infer modules from the HDL code, or by letting you specify the module with the LogiBLOX Module Selector in its stand-alone mode and then instantiating it in your HDL design.

LogiBLOX modules are created to take full advantage of the architecture being targeted. Supported architectures are the XC3000A, XC3100A, XC4000E, XC4000EX and XC5200 device families.

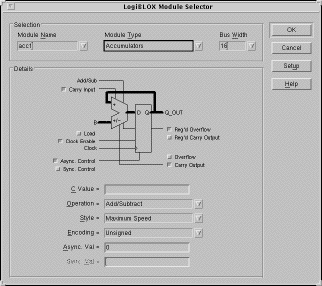

Logiblox Module Selector

 LogiBLOX Module Selector


Advantages of using LogiBLOX

LogiBLOX includes the following features that enhance design entry and module processing:

LogiBLOX Design Entry Features

  • LogiBLOX eases design entry by allowing you to tailor complex logic blocks to precisely match your design¹s needs.
  • The LogiBLOX graphical user interface allows you to quickly and easily specify complex modules with the assistance of interactive Design Rule Checker (DRC) checks and prompts.
  • An image of the module with the specified pins and attributes is updated each time you activate a module attribute or connection in the Module Selector.
  • The graphical user interface automatically disables selections that are incompatible with your current design selections.

LogiBLOX Processing Features

  • In a synthesis-based environment, the modules you create with LogiBLOX are implemented as you incorporate them into the rest of your design.
  • In LogiBLOX, a simulation model (VHDL, EDIF, or Verilog) is generated for each LogiBLOX module during design entry. This enables immediate simulation of LogiBLOX design without logic implementation. The behavioral functional model is produced as you enter the LogiBLOX module in your schematic.
  • Many synthesis tools automatically infer LogiBLOX modules. You can also incorporate LogiBLOX modules in HDL designs through instantiation without compromising behavioral simulation support.
  • Modules are synthesized quickly "on-the-fly" by the LogiBLOX module compiler.

LogiBLOX Modules

Get Acrobat to view the pdf PDF files below.

pdf Download datasheet version of this page.

LogiBLOX modules are listed below by function:
Modules Function
ACCUMULATOR Adds data to or subtracts it from the current value stored in the acculator register.
ADDER/SUBTRACTER Adds or subtracts two data inputs and a Carry input.
COMPARATOR Compares the magnitude or equality of two values.
COUNTER Generates a sequence of count values.
Logic
CONSTANT Forces a constant value onto a bus.Forces a constant value onto a bus.
DECODER Routes input data to 1-of-n lines on the output port.
MULTIPLEXER Routes input data on 1-of-n lines to the output port.
SIMPLE GATES Implements AND, INVERT, NAND, NOR, OR, XNOR, and XOR logic functions.
TRISTATE Creates a tri-stated data bus.
I/O
INPUT/OUTPUT Connects internal and external pin signals.
PAD Simulates an input/output pad.
Sequential
CLOCK DIVIDER Generates a period that is a multiple of the clock -input period.
COUNTER Generates a sequence of count values.
SHIFT REGISTER Captures the input data on active Clock transitions.
Storage
DATA REGISTER Captures the input data on active Clock transitions.
MEMORY: ROM, RAM, SYNC_RAM, DP_RAM Stores information and makes it readable.
SHIFT REGISTER Shifts the input data to the left or right.
