Foundation Series v2.1i Software
A Complete, Ready to Use
Programmable Logic Design Environment


    The Foundation Series software has been designed to enable both new and experienced programmable logic designers to achieve handcrafted results automatically, through push-button design flows.  You are assured of success on each and every design because Foundation Series gives you the advanced tools and technology you need, and you are backed by our well staffed, highly skilled, software applications support team.

More Information:
Enabling your 2.1i software for Virtex-E
HDL Design Made Simple
Advanced Synthesis Technology
Push-button, Mixed-level Design Environment
Simplified IP / Core Integration
Advanced Implementation Tools
Foundation Series Product Configurations
Feature Summary
ModelSim Xilinx Edition
Buy Xilinx Products On-Line!
These complete solutions can be purchased on-line at the Xilinx Silicon Xpresso CafeInternet Link:

Foundation Series Base
Foundation Base Express
Buy this product online!
Foundation Express
Buy this product online!
ModelSim Xilinx Edition
Buy this product online!


HDL Design Made Simple

The Foundation Series includes a comprehensive set of HDL design tools that support both VHDL and Verilog.  Graphical entry capabilities are provided in a complete, mixed level design environment, featuring:

HDL Editor - Provides extensive color coded editing and searching capabilities with integrated syntax checking
Language Assistant / Design Wizard - Speeds design entry by managing the Xilinx supplied library of commonly used language constructs and logic modules, as well as user created libraries
State Editor - Enables fast, intuitive, graphical entry of both simple and complex state machines.

HDL Synthesis and Optimization is performed using an embedded version of Synopsys FPGA Express technology. Coding errors found during compilation are highlighted directly in the source code, to simplify your debugging. All shipments of Foundation Series also include free evaluation versions of ModelSim PE HDL Simulation products, enabling Xilinx customers to test drive source code debugging tools from Model Technology Inc.


Advanced Synthesis Technology


Vista - FPGA Express Schematic Viewer
The Foundation Series Express product configurations incorporate world class EDA technology developed by our strategic partners.  New in this release is the latest FPGA Express synthesis engine from Synopsys (v3.2), which brings unprecedented levels of design performance, and productivity for your VHDL and Verilog HDL designs. Foundation Series automated design flows embed the FPGA Express technology, dramatically improving designer productivity for both mixed-level and all HDL design flows.

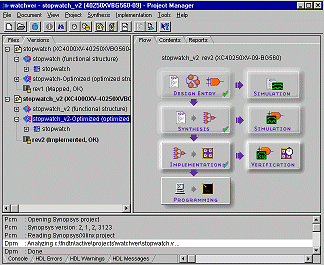

Push-button, Mixed-level Design Environment

All of the advanced technology within the Foundation Series works seamlessly together. For example, you can embed VHDL and Verilog components into a top level schematic, and then simulate the entire design. With the push of a button, all of the design source files are compiled into the Xilinx Programmable Logic Device that you specified - meeting the timing specification you supplied using the Foundation Series Constraints Editor.

 So while you have complete control over every aspect of the design entry, synthesis and implementation process, you also can apply intuitive, push-button design techniques that simplify the completion of your design.


Embedded CORE Generator Simplifying IP Integration

The Xilinx CORE Generator, now embedded in the Alliance and Foundation Series v2.1i software, simplifies the integration of intellectual property into your design by providing drop-in access to flexible, high performance FPGA-based cores.

The CORE Generator tool includes an intuitive navigation tree for searching and selecting cores from Xilinx or Xilinx AllianceCORE Partners.  Additionally, Xilinx LogiCORE modules utilize Smart-IP technology which ensures that Xilinx Cores use the architectural advantages of Xilinx FPGAs resulting in high performance, predictable, repeatable, and flexible core-based designs.


The Industry's Most Advanced Implementation Tools

The Foundation Series also includes Xilinx' latest implementation tools, seamlessly
 integrated to help you create the most efficient and compact designs that operate at the highest possible speed. These features include

  • Timing Driven Place and Route - Allows you to specify your timing requirements for critical paths. This feature often gives 30-40% performance improvements when speed is critical; you no longer need to manually fine-tune your design.
  • Static Timing Analysis - Shortens your design process by providing an evaluation of your timing at various points in the implementation process, allowing you to make changes immediately.
  • Flow Engine - Automates and simplifies the implementation process.  Using a simple graphical interface, you can monitor and control all aspects of your design implementation.
  • Simulation - Provides design verification before and after implementation, thus reducing the number of design iterations required to meet design specifications.
  • Incremental Design Capability - Reduces your overall design cycle by allowing you to re-use previous iterations of your design.  This is very helpful for evaluating design alterations.
  • Hierarchical Timing Analysis - The Interactive Timing Analyzer has received a variety of dramatic improvements to its User interface, including hierarchical reporting of timing analysis results.  This feature simplifies the process of navigation through the rich set of timing information Xilinx provides on your design.
  • In-System Debugging with Probe - Provides real time access to any internal signal for system level debugging. It does not require modifications to the source design or design recompilation. See Probe to learn its benefits and how to use it.

Foundation Series Product Configurations

Foundation Series software supports a variety of devices and is the first to support the industry's first two million gate FPGA.  Foundation Series software is available in four product configurations; each licensed in accordance with the Annual License Program. The devices supported in each configuration is outlined below.

Device Support
v2.1i Foundation Base and Base Express
CPLDs XC9500/XL/XV
v2.1i Foundation Express (Standard)
CPLDs XC9500/XL/XV
v 2.1i Foundation Elite (Available Sept. 1999!)
CPLDs XC9500/XL/XV
FPGAs
Virtex XCV50
XC4000E/X
(Up to XC4010E/X)*
All Spartan/XL
All XC3x00A/L
XC5200
(Up to XC5210)
FPGAs
Virtex
(Up to XCV1000E)
All XC4000E/X
All Spartan/XL
All XC5200
All XC3x00A/L
FPGAs
All Virtex/E
All XC4000E/X
All Spartan/XL
All XC5200
All XC3x00A/L
*Note:The XC4013L and XC4013XL devices are supported in the Foundation Series Base System

All Foundation Series product configurations other than Foundation Base embed FPGA Express synthesis technology from Synopsys providing unprecedented levels of design performance, and productivity for your VHDL and Verilog HDL designs.  Foundation Express and Foundation Elite also include the FPGA Express graphical constraints editor, Time Tracker and Vista GUIs.


Platform and System Requirements

Platform Support
IBM PC or Compatible
  • Win95/Win98

  • (Chinese, Korean, US, Japanese)
  • Windows NT 4.0

  • (US, Japanese)
  • NEC98
  • 120 MHz Pentium processor
  • 389 MB of hard disk space
  • 48 MB of RAM
  • 64 MB of Virtual Memory
  • 4x CD-ROM drive
The memory requirements for both RAM and hard disk space will vary depending on your target device family and size as well as the unique characteristics of your design.  For detailed listings of the memory requirements specific to your installation, please reference the Foundation Series 2.1i Release Notes and Installation Guide on WebLINX.


Feature Summary
The Foundation Series supports the full line of Xilinx FPGAs and CPLDs including our XC3000, XC4000E/X/XL/XV, XC5200, XC9500,Spartan/XL and Virtex families. Also included are synthesis tools for ABEL; interfaces to EDIF, VHDL, and Verilog; and the most efficient HDL design tools in the industry. The table below lists the Foundation Series features.

Features   Foundation Series Part Numbers

 FND-BAS

FND-BSX

FND-EXP

FND-ELI
Synthesis Constraints Editor
and Timing Analyzer


Synopsys FPGA Express Synthesis
(VHDL and Verilog synthesis)



Web Enabled Design Features



ABEL Synthesis



HDL Design Tools
HDL Wizard, Context Sensitive HDL Editor, Graphical State Editor, and Language Assistant




Schematic Editor



LogiBLOX Module Generator



Xilinx CORE Generator System



Simulator (Functional and Timing)



HDL Simulation Libraries
(UniSim and Simprim)




EDIF, VHDL (VITAL), and Verilog
Back Annotation




Implementation Tools
Design Manager, Flow Engine, Timing Analyzer, Hardware Debugger, JTAG Programmer, PROM File Formatter, Graphical Constraint Editor, Graphical Floorplanner




CPLD Devices Supported
XC9500 & XC9500XL (All)




FPGA (Base System Device Support)
XC3x00A/L (All)
XC4000E/X (Up to XC4010E/X)*
XC5200 (Up to XC5210)
Spartan and SpartanXL Devices (All)
Virtex XCV50




FPGA (Standard System Device Support)
XC3x00A/L (All)
XC4000E/X/XL/XLA/XV (All)
XC5200 (All)
Spartan and SpartanXL Devices (All)
Virtex (Up to XCV1000 & XCV1000E)


FPGA (Elite System Device Support)
XC3x00A/L (All)
XC4000E/X/XL/XLA/XV (All)
XC5200 (All)
Spartan and SpartanXL Devices (All)
Virtex and Virtex-E (All)

*Note:The XC4013L and XC4013XL devices are supported in the Foundation Series Base System

For more information on the Xilinx Software Solutions, please visit the Software Solutions Page or contact your local Xilinx sales office.
