The Xilinx Student Edition Package


Picture of Xilinx Student Edition Package

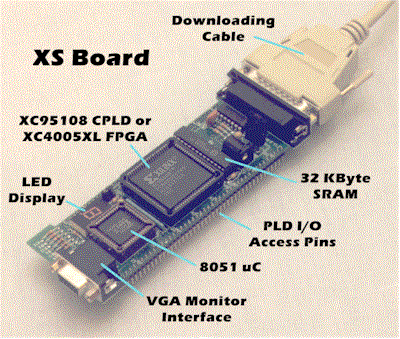

Picture of the XS Development Board
Xilinx Student Edition Page

Return to XUP Home Page





(Above - Picture of the Xilinx Student Edition package available in bookstores.)

(Below) The Xilinx Student Edition also includes a coupon for the "XS95-108" and the "XS40-005XL" development board kits at a significantly discounted price. The kit includes a download cable, a development board, downloading utilities and instructions.

Features of the XS95 and XS40 boards are:

  1. Supports all XC9500 or XC4000XL devices in 84-pin PLCC package
  2. 8051  microcontroller
  3. 32KByte SRAM
  4. 7 Segment LED Display
  5. Cable and instructions to download designs directly from any PC's parallel port
  6. Bytewide data or test vector interface to the CPLD or FPGA
  7. PROM socket on the XS40 FPGA-based board
  8. Easy Access to CPLD or FPGA I/O Pins
  9. I/O Access pins plug directly into standard solderless breadboards
  10. Multiple boards can be daisy chained to each other
The connector pins, which run along both sides of the board, allow for easy prototyping and access to all of the I/O pins on the programmable logic device. Additionally, the pins are designed to be inserted into any standard solderless breadboard. This is perfect for lab development and student projects in which the student may wish to connect the development board to other devices such as A/D converters, LEDs, external clocks, diodes or other system level circuitry.

For more information on this development board, see XESS Corporation's web pageInternet Link.
