Xilinx Reed-Solomon Solution |
Brings flexibility, time-to-market and cost advantages to high-volume wireless, mass storage and multi-media markets.
|
|
|
Reed-Solomon Lounges (Customers only) |
Overview |
|
Xilinx provides user-parameterizable LogiCORE Reed-Solomon encoder and decoder cores
for customers designing digital communication, mass storage, and multimedia systems.
By using Xilinx Reed-Solomon solution users can significantly reduce implementation
cost and accelerate time-to-market compared to fixed function ASSP alternatives.
The cores support Xilinx Virtex/-E, Spartan-II, Spartan/-XL and XC4000 FPGA families.
Implemented in Spartan-II, the Reed-Solomon solution costs less than $10 in high-volume
making it ideal for many emerging high-volume markets. Click here for FAQ, data sheets, configuration demo, and other links. |
More information on |
The Basics of Reed-SolomonReed-Solomon is a type of Forward Error Correction (FEC) commonly used in data transmission and storage applications, such as wireless communication units, DSL modems, Digital TV, RAID, DVB and DVD products. By adding redundancy before data transmission and storage, a Reed-Solomon codec (encoder/decoder) can detect and correct errors for blocks of data. There are many different standards that are used in different applications, for example DVB, ATSC, and IESS-308. |
Core Features |
|
|
Jointly developed with a Xilinx AllianceCORE partner |
Xilinx Smart-IP Technology |
|
The definition for Xilinx Smart-IP technology is a combination of:

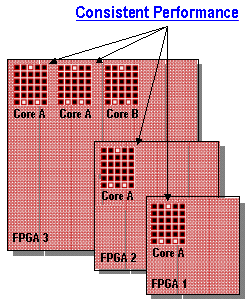

The result is predictable design implementation where performance and functionality are consistent independently of core placement, number of cores used, surrounding user logic, device size, and used EDA tools. Xilinx Smart-IP Technology is vital for successful system-on-a-chip designs. |
|
Implementation Example
|
Ordering information
Please contact your local Xilinx Sales Office for pricing information or to place an order. Xilinx LogiCORE Reed-Solomon Products are provided under Xilinx standard LogiCORE Reed-Solomon license agreement. Additional Informationto view the PDF files on this page.
Additional Spartan-II Information* Note that a browser that supports the JDK1.1.5 version of Java, such as Netscape Communicator 4.5 or later, is required to view the core generation GUI's. Netscape Communicator 4.5 or later may be downloaded from here. Java must be enabled in the browser preferences. |
