What are customers saying about Alliance Series software?

Jaap Mol, a CAE Consultant with Signaal, is extremely pleased with his selection of the new Alliance Series software from Xilinx. Jaap credits the ease-of-use, controllability, and support of industry standards of Alliance Series software with allowing him to successfully meet his design speed, density, price and time-to-market requirements.


About the design

Signaal utilized Alliance Series software to successfully complete an MC68360 CPU and SHARC bus interface design. The design needed to run at a clock frequency of 25 MHz. Jaap chose to use the Xilinx Alliance Series to implement an XC4010E-4PQ208 FPGA. Not only did the design run at the required frequency, but it used only 70% of the CLBs and 80% of the IOBs. In addition, all I/O pins were locked to enable concurrent design of the PCB layout.


The design flow was easy-to-use!

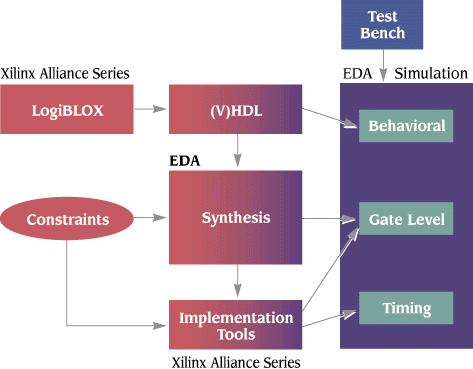

The design was entered using VHDL, verified using a leading VHDL simulator, and synthesized/optimized with a leading synthesis tool. The same VHDL test bench was used to simulate the behavioral RTL design and the implemented design, before and after place and route. (See figure 1.0).  The synthesis tool generated an industry standard EDIF netlist, containing both gate and connectivity information, which was then directly implemented by the Xilinx next generation software technology.


Powerful incremental design capabilities

According to Jaap, “The enhanced capabilities in the Design Manager allows for true incremental design capabilities.  If changes have been made to the logic design (e.g., the netlist), it is referred to as a new version of the design. If the design is mapped into another device, package, or speed-grade, this can be referred to as a new revision.  This allowed us to make tradeoffs, without loss of previous results.”


Seamless support of industry standard netlist

Jaap was pleased with Xilinx’s support of industry standards, which makes the interface to third party EDA vendors seamless.  “Place & route tools also generate a standard VHDL (Verilog) netlist and SDF file with the timing information, making it possible for us to perform simulation both before and after place & route.  Improvements include: usability of the software; controllability of the tools; new help and report browsing; and interface format to existing EDA tools. Availability of the VITAL compliant VHDL library makes it possible to use one test bench, one simulator, and one language on any level of abstraction. We believe this was the reason why interfaces from the synthesizer and simulator did not cause any major problems.”


Powerful auto-interactive M1 implementation tools

Advanced place & route tools deliver enhanced productivity through a combination of powerful incremental design capabilities and optimization technology.  Alliance Series software delivers a combination of attributes that ensure higher device utilization and design performance through push-button flows:
  • New structured placement algorithms which automatically optimize the alignment of busses using tri-state buffers
  • Enhancements to the circuit packaging algorithms
  • Improvements in timing driven place-and-route capabilities that increase performance by 15%
 In summing up his experience with Alliance Series software, Japp concluded by saying, “Xilinx has obviously put a lot of effort into the development of this new release. The new tools helped cut down our design time significantly, which translated into reduced time-to market.”
