Alliance Series v2.1i Software
The Industry's most advanced Programmable Logic Design Tools, integrated into your design environment


     The Alliance Series software is designed for companies who have made an investment in an EDA environment customized to suit the needs of their design engineers.  The Xilinx Alliance Series plug and plays by leveraging open systems standards, interfaces and formats such as EDIF, SDF, VHDL, VITAL/Verilog and STAMP.  Combining the strengths of our EDA partner tools with the advanced implementation features found in the Xilinx Alliance Series Software provides digital designers the ultimate in flexibility and design performance.

More Information:
Enabling your 2.1i software for Virtex-E
Supporting 2 Million Gate FPGA Design
The Value of Alliance EDA Partnerships
Alliance EDA partners
Alliance Series Product Configurations
Alliance Series Feature Highlights
Feature Summary
Platform and System Requirements
ModelSim Xilinx Edition
Buy Xilinx Products On-line!
The following Alliance Series configuration can be purchased on-line at the Xilinx Silicon Xpresso CafeInternet Link:

Alliance Series Base
Buy this product on-line!
Alliance Series Standard
Buy this product on-line!
ModelSim Xilinx Edition
Buy this product on-line!


Supporting up to 2 Million Gate FPGA Design

Version 2.1i of the Alliance Series software has been optimized to deliver efficient, high density design flows for Xilinx 2 Million gate programmable logic devices.  Dramatic improvements in the implementation algorithms for high density FPGAs and the support of a variety of system level design features, enable Alliance Series designers to create high-performance designs using the ultra high density extensions to the Virtex family.  Additionally, fast compile times and the embedded Xilinx Core Generator System help make targeting a design on a multi-million gate device a reality.

  • Compile 100,000 System Gates in less than a minute

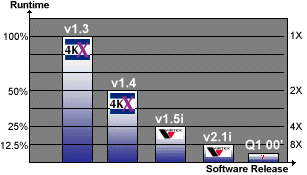

The Version 2.1i design solutions continue Xilinx' trend of cutting place and route runtime in half, while maintaining or improving design performance.  The accumulation of runtime improvements now enable the compilation of the 100,000 system gate Virtex devices in less than one minute.
And, given the broad suite of cores supporting Virtex FPGAs today, high level systems functions including the 64 bit/66 MHz PCI interface can be implemented in less than 20 minutes.  Fast compile times translate to more turns per day and greater productivity.
  • Embedded CORE Generator tool

The Xilinx CORE Generator, now embedded in the Alliance Series v2.1i software, simplifies the integration of intellectual property into your design by providing drop-in access to flexible, high performance FPGA-based cores.
The CORE Generator tool includes an intuitive navigation tree for searching and selecting cores from Xilinx or Xilinx AllianceCORE Partners.  Additionally, Xilinx LogiCORE modules utilize Smart-IP technology which ensures that Xilinx Cores use the architectural advantages of Xilinx FPGAs resulting in high performance, predictable, repeatable, and flexible core-based designs.

The Value of Alliance EDA Partnerships

In order to ensure that designers can take advantage of the many advances in EDA technology, Xilinx has built close relationships with many of the industry's leading EDA tool vendors, resulting in timely support of emerging design methodologies.  Combining the strengths of our partner's tools with our own advanced implementation technology provides you with a powerful overall design solution, the highest clock performance and the highest densities in the industry. To learn more about the Alliance EDA program and our Alliance EDA partners, visit our Alliance EDA pages.


Alliance Series Product Configurations

Alliance Series software supports a variety of devices and is the first to support the industry's first two million gate FPGA.  Alliance Series software is available in a Base, Standard or, in September, 1999, Elite configurations.  Each configuration is available for use on either a PC or workstation platform and are licensed in accordance with the Annual License Program.  The primary difference between Alliance Series product configurations is the size of XC4000E/X and Virtex devices which can be implemented. The chart below shows the specific device support for each configuration.

Device Support
Alliance Base
(v2.1i Now Shipping)
CPLDs XC9500/XL/XV
Alliance Standard
(v2.1i Now Shipping!)
CPLDs XC9500/XL/XV
Alliance Elite (Available September 1999!)
CPLDs XC9500/XL/XV
FPGAs
Virtex XCV50
XC4000E/X
(Up to XC4010E/X)*
All Spartan/XL
All XC3x00A/L
XC5200
(Up to XC5210)
FPGAs
Virtex
(Up to XCV1000E)
All XC4000E/X
All Spartan/XL
All XC5200
All XC3x00A/L
FPGAs
All Virtex/E
All XC4000E/X
All Spartan/XL
All XC5200
All XC3x00A/L
*Note:The XC4013L and XC4013XL devices are supported in the Alliance Series Base System.

The Alliance Series Elite configuration will also offer the Xilinx Internet Team Design development option when it becomes available in November of 1999.


Alliance Series Feature Highlights

Graphical Constraints Editor
  • Achieve your desired design performance on the first pass.
  • You are guided to an optimum constraint setting through a display of clocks and ports in the design, in an easy-to-use format.
  • No need to know the names of nets and components.

Stamp Model Generation LMG Smartmodel Generation
  • Supports the use of board level Static Timing Analysis tools:
  • Mentor Graphics' Tau
  • Viewlogic's Blast
  • Accelerate board level design verification
  • Supports the use of board level Simulation Tools
  • Efficient modeling language accurately defines FPGA I/O behavior
  • Dramatically accelerates system level verification

In-System Debugging with Probe
  • Provides real time access to any internal signal for system level debugging
  • Does not require modifications to source design.
  • Does not require design recompilation.
  • How to use Probe

Minimum Timing Delays Voltage and Temperature Pro-rating
  • Guarantee your design performance with both minimum and maximum process delay numbers.
  • Test how fast your design can perform under favorable operating conditions.

HDL Synthesis HDL Verification
  • Benefit from premier partnerships with the industry's leading synthesis vendors, providing you the highest performance for FPGAs and CPLDs.
  • Reduce your design time by 25% by adopting an HDL testbench methodology.
  • Two design guides explain Xilinx' leading technology and how it works with our HDL simulation partners.

Floorplanner
  • Increase your design's performance by as much as 40%.
  • Designers can choose to add their knowledge of the structure of the design methodology by employing a floorplanner.


Feature Summary

The Alliance Series supports the full line of Xilinx FPGAs and CPLDs including our XC3000, XC4000E/X/XL/XV, XC5200, XC9500, Spartan/XL and Virtex families. Also included are the industry's most advanced implementation technology. The table below lists the Alliance Series features included in each of the three product configurations.


Features   Alliance Series Part Numbers

 ALI-BAS

ALI-STD

ALI-ELI
EDA Libraries and Interfaces for Cadence, Exemplar, Mentor, MTI, Synopsys, Synplicity and Viewlogic


Internet Enabled Design Features


Support for Internet Team Design (Xilinx iTD)


Xilinx CORE Generator System


LogiBLOX Module Generator


Turns Engine (Workstation Only)


Simulator (Functional and Timing)


HDL Simulation Libraries
(UniSim and Simprim)



EDIF, VHDL (VITAL), and Verilog
Back Annotation



Stamp Models


Logic Modeling SmartModels


Implementation Tools
Design Manager, Flow Engine, Timing Analyzer, Hardware Debugger, JTAG Programmer, PROM File Formatter, Graphical Constraint Editor, Graphical Floorplanner



CPLD Devices Supported
XC9500 & XC9500XL (All)



FPGA (Base System Device Support)
XC3x00A/L (All)
XC4000E/X (Up to XC4010E/X)*
XC5200 (Up to XC5210)
Spartan and SpartanXL Devices (All)
Virtex XCV50



FPGA (Standard System Device Support)
XC3x00A/L (All)
XC4000E/X/XL/XLA/XV (All)
XC5200 (All)
Spartan and SpartanXL Devices (All)
Virtex/E (Up to XCV1000 & XCV1000E)


FPGA (Elite System Device Support)
XC3x00A/L (All)
XC4000E/X/XL/XLA/XV (All)
XC5200 (All)
Spartan and SpartanXL Devices (All)
Virtex and Virtex-E (All)

*Note:The XC4013L and XC4013XL devices are supported in the Alliance Series Base System


Platform Support and System Requirements

Platform Support
IBM PC or Compatible
Workstation
  • Win95/Win98

  • (Chinese, Korean, US, Japanese)
  • Windows NT 4.0

  • (US, Japanese)
  • NEC98
  • Solaris 2.6 & 2.7
  • HP-UX 10.2
The memory requirements for both RAM and hard disk space will vary depending on your target device family and size as well as the unique characteristics of your design.  For detailed listings of the memory requirements specific to your installation, please reference the Alliance Series 2.1i Release Notes and Installation Guide on WebLINX.

For more information on the Xilinx Software Solutions, please visit the Software Solutions Page or contact your local Xilinx sales office.
