Slide 9 of 22
Notes:

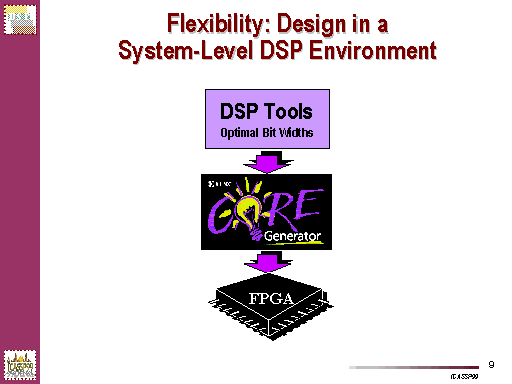

To simplify the DSP design process software tools are now available
that create standard DSP building blocks in the form of parameterizable
FPGA cores. Functions such as filters, storage elements, and arithmetic
operations have parameterizable bit widths. System level DSP modeling tools
can be used to determine optimal bit widths for each stage of the data
path processing thereby minimizing the number of programmable resources
required for implementation.
FPGA core generator software builds the core with your parameters producing
custom building blocks that can be integrated with other cores and with
logic defined by standard HDL synthesis software.
The quality of results using logic synthesis has dramatically improved
with new FPGAs. Larger device sizes mean the you can afford to trade off
hardware resources for design expediency.
The combination of parameterizable DSP cores and VHDL / Verilog design
methodology is proving itself to be the ideal DSP design approach for FPGAs.
