96 kHz, Digital Audio Transceiver

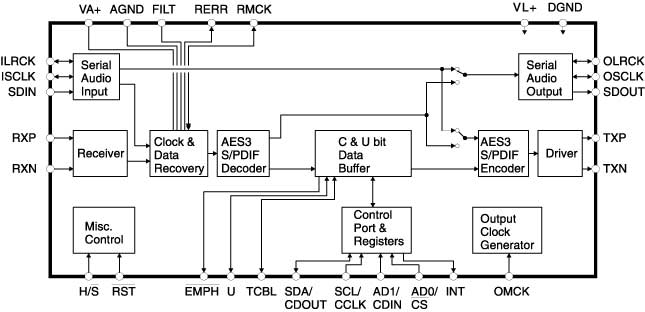

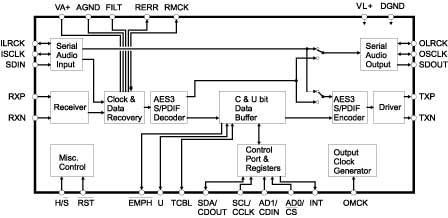

The CS8427 is a stereo, digital audio transceiver with AES3 and serial, digital audio inputs, AES3 and serial digital audio outputs, along with comprehensive control through a 4-wire micro-controller port. Channel Status and User data are assembled in block-sized buffers, making read/modify/write cycles easy.

A low jitter, clock recovery mechanism yields a very clean recovered clock from the incoming AES3 stream.

Target applications include A/V receivers, CD-R, DVD receivers, multimedia speakers, digital mixing consoles, effects processors, set-top boxes, computer, and automotive audio systems.

• Complete EIAJ CP1201, IEC-60958, AES3, S/PDIF compatible transceiver
• Flexible 3-wire serial digital I/O ports
• Adjustable sample rate up to 96 kHz
• Low jitter, clock recovery
• Pin and micro-controller read/write access to Channel Status and User data
• Micro-controller and standalone modes
• Differential cable driver and receiver
• On-chip Channel Status and User data buffer memories permit block reads and writes
• OMCK system clock mode
• Decodes audio CD Q sub-code
• 5V analog supply (VA)
• 3 to 5V digital supply (VL)
• Package: 28-pin SOIC/TSSOP
