Low Voltage, Stereo, A/D Converter

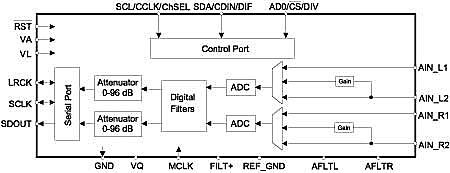

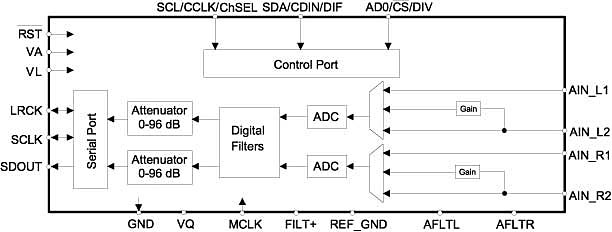

The CS53L32A is a highly integrated, 24-bit, 96 kHz audio A/D converter providing stereo, analog-to-digital converters using Delta-Sigma conversion techniques.

The CS53L32A is based on Delta-Sigma modulation, allowing infinite adjustment of the sample rate between 2 kHz and 100 kHz simply by changing the master clock frequency.

The CS53L32A contains adjustable analog gain, a 2:1 input mux, and digital attenuation.

The CS53L32A operates from a 1.8 to 3.3V supply. These features are ideal for portable MP3 players, mini-disc recorders/players, digital camcorders, PDAs, set-top boxes, and other portable systems that require extremely low power consumption in a minimum of space.

Product Features
  • 24-bit conversion / 96 kHz sample rate
  • 98 dB dynamic range at 3V supply
  • -88 dB THD+N
  • Up to 32 dB gain
    • 20 dB gain step
    • 12 dB variable input gain (1 dB steps)
    • Changes made at zero crossings
  • Stereo inputs
  • Digital volume control
    • 96 dB attenuation, 1 dB step size
    • Mute
    • Soft ramping
  • 2:1 input MUX
  • 1.8 to 3.3V supply
  • Low power consumption
    • 9.7 mW at 1.8V
  • Package: 20-pin TSSOP

Documents
CS53L32A Produc
t Data Sheet

JUL '00, DS513PP1 : 661 Kb
Errata: CS53L32A Datas
heet Correction

AUG '00, ER513B1 : 16 Kb
