XC6200 FPGA Development System

XC6200 Application Notes

Download XACT6000 upgrade and XC6200DS Inspector



Interested in hardware/software co-design or FPGA design emulation?

Would you like to



  • Build your own video or graphics accelerator card ?
  • Design and build your own pci-based application ?
  • Make use of high speed design emulation ?
  • Try out each step of your design using a real-time hardware debugger?
  • Harness the power of reconfigurable processing ?
The solution to all your hardware and software development needs is the XC6200 Development System.

Enhanced testing software and real-time chip reconfiguration make XC6200DS the fastest way to design, build and debug pci-based applications.

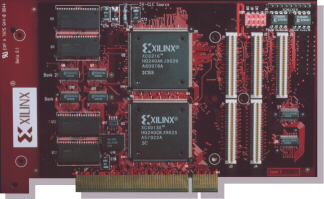

XC6200 Development System





Discover more about the XC6200DS...

Download the XC6200DS Inspector and the most recent version of XACT6000 software absolutely FREE!


About the XC6200DS

Today's leading edge applications require the simultaneous development of hardware and software with minimum lead times. Only the XC6200DS provides a platform for efficient codesign with enough capacity for real applications.

Included in the package is XC6200 Inspector: a high-speed design emulation tool that not only tests designs, but also allows on-chip design reconfiguration during test runs.




Features

  • PCI Based Development System Up to 64K User Programmable Gates



  • Up to 2 Mb fast SRAM



  • IDD monitoring of Xilinx 6200



  • Flexible clock generation for Xilinx 6200



  • Expansion via mezzanine connectors to standard prototyping board
  • Hardware implements XC6200 Compute Element Reference Design



  • Device Driver interface to board implements standard Application Binary Interface



  • First affordable FPGA Co-processor platform for medium volume OEM applications



  • Debugger software supports validation of XC6200 based designs and reduces time to market



Applications

The possible applications for the XC6200 Development System are limitless; they extend from possible use in audio and video equipment to the aeronautics industry. See XC6200 Application Notes.

Both the XC6200 Development System Datasheet and the board Schematics (Annapolis & VCC Hot Works 1) are available below for viewing as PDF files:

Get Acrobat to view the pdf PDF files below.

 XC6200 Development System Datasheet (433Kb)
 XC6200DS Board Schematic (for Annapolis & Hot Works 1) (433Kb)



Suppliers

XC6200 Development System PCI Boards can be obtained from the following suppliers:


  Annapolis Micro Systems


Annapolis Microsystems - WildfireInternet Link           The VCC Hot Works Development SystemInternet Link


Download

Download the latest software for the XC6200DS absolutely FREE. This software supports both Windows 95 and Windows NT 4.0.


* NOTE: This upgrade requires a previous version of  XACT6000 to be   installed on your machine. A CD with the full version of XACT6000 (plus other utilities) can be obtained from one of the board suppliers mentioned above (see Suppliers).



 Upgrade to XACT6000 V1.1.7 - Place and route tools for the XC6200*.

Also, XC6200 Inspector new01.gif (1134 bytes)
- a high-speed design emulation tool that not only tests designs, but also allows on-chip design reconfiguration during test runs.

For the download menu and a complete listing of what's available, click here NOW: Download Menu
