Spartan-XL

What's New
Success Stories




The Spartan®-XL Family of FPGAs is the only complete line of low cost FPGAs that feature on-chip RAM and broad support for predefined cores. The Spartan-XL products are available in densities ranging from 5,000 to 40,000 system gates. The new Spartan-II Family extends the Spartan Series to 200,000 gates.

New Applications

ASIC Replacement for High Volume Applications
New Applications in Existing Markets
PC peripherals Portable phones
Automotive cabin controls and GPS systems Network interface cards
Digital television Handsets
Video acquisition and editing Digital modems
Badge and credit card readers Computer interface boards

Low Price

Pricing for the XCS05XL now begins at $2.49 for 250,000-unit quantities, with the XCS40XL at $7.40 in the same quantities. The new Spartan-II Family continues to dramatically reduce cost.

Spartan-XL Family New Features

Low Power and Power Down

By reducing the power supply to 3.3V, the Spartan-XL Family consumes less than half the power of the 5V devices. A PowerDown pin reduces ICC to 100 microamps typical and 2.5 milliamps maximum.

High Speed

The Spartan-XL Family offers extremely high speed. The dedicated carry logic for counters and arithmetic applications has been optimized for speed, allowing counters to run well over 120 MHz.

SelectRAM Flexibility

The Spartan-XL Family is the only ASIC replacement FPGA family that offers on-chip user RAM, in the form of SelectRAM memory. This distributed RAM can be used for efficient FIFOs, shift registers, and scratch pad memories.

Software Support

The Spartan-XL Family, with all its new features, is fully supported by version 2.1i of the Xilinx Alliance and Foundation development systems. In addition, there are several core solutions available today for the Spartan-XL Family, including a 33 MHz, 32 bit PCI master/slave LogiCORE solution. A programmable option on the Spartan-XL device allows compliance with either 3.3V or 5V PCI interfaces.

High Value Applications with Spartan-XL Family

Core Function
XCS30XL
Price
Percentage of
Device Used
Effective
Function Cost
UART
$5.50
17% $0.95
16-bit RISC Processor
$5.50
36%
$2.00
16-bit, 16-tap Symmetrical FIR Filter $5.50 27% $1.50
Reed-Solomon Encoder $5.50 6% $0.35
PCI Interface (in PQ208 package) $6.55 45% $2.95

Chip Scale Packaging Saves Space

The Spartan-XL FPGA family is available in 144-ball and 280-ball, 0.8-millimeter pitch chip scale packages. Xilinx is the first programmable logic supplier to offer the CSP package for an FPGA that meets the JEDEC Level 3 moisture sensitivity level requirements. This level of reliability enables customers to reduce standard manufacturing cycle times and further minimize overall system cost. See the High-Volume Package Solutions Guide for more details.

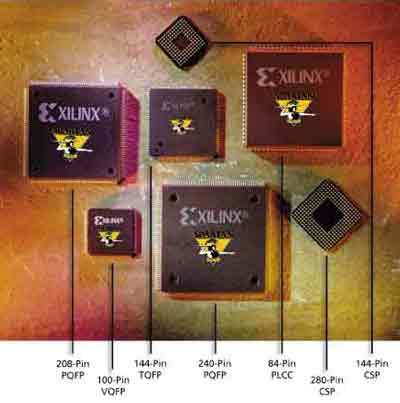

Advanced Spartan FPGA Packaging

Spartan-XL Devices

  XCS05XL XCS10XL XCS20XL XCS30XL XCS40XL
System Gates* 2K-5K 3K-10K 7K-20K 10K-30K 13K-40K
Logic Cells** 238 466 950 1,368 1,862
Max Logic Gates 3,000 5,000 10,000 13,000 20,000
Flip-Flops 360 616 1,120 1,536 2,016
Max RAM bits 3,200 6,272 12,800 18,432 25,088
Max Available I/O 77 112 160 192 224
Packages PC84 PC84
VQ100 VQ100 VQ100 VQ100
  CS144 CS144
  TQ144 TQ144 TQ144
    PQ208 PQ208 PQ208
      PQ240 PQ240
      BG256 BG256
      CS280 CS280
* 20-30% of CLBs as RAM
** 1 Logic Cell = 4-input Look-Up Table + Flip-Flop
