XC4000XL/XLA Series FPGAs
Doubling Gate Capacities; Delivering Industry-Leading Speed

Optimized for 3.3 volt designs, the Xilinx XC4000X series FPGAs now offer twice the capacity of any previous FPGA while delivering industry-leading system performance. Consisting of the new XC4000XLA and XC4000XV FPGA families, the XC4000X series is an enhanced version of the industry-standard XC4000 architecture.
4KX

The XC4000X Series is part of the broad spectrum of Xilinx "XL" products unveiled September 28, 1998.  As a result, Xilinx offers the broadest choice of 3.3 volt and 2.5 volt devices available from a single supplier, with densities ranging from 800 to 500,000 system gates.

With 12 family members ranging from 30,000 to 500,000 system gates, the devices feature patented SelectRAMTM memory; offering a highly flexible arrangement of logic, single-port or dual-port memory.  Designed in an advanced 0.25 micron process, the XC4000X series delivers industry-leading performance while significantly reducing power consumption.


500,000 System Gates
The XC4000XV family, with up to 500,000 system gates, offers twice the capacity of competitive products.  Plus, you can maintain a high level of performance; efficient clock buffering and abundant, fast, segmented routing gives you the shortest possible interconnect delays

High Capacity:

  • 30,000 to 500,000 system gates
  • Over 18,000 dedicated flip-flops
  • Over 270,000 RAM bits
  • Up to 448 user I/O
4K System Gates


Unprecedented Performance at High Capacities
The XC4000X series uses unique architectural enhancements and advanced 0.25 micron process technology to attain unprecedented speed at high capacities.  Additional routing resources and highly buffered clock networks ensure that you get the highest possible performance.  New tri-state I/O registers and FastCLK buffers significantly increase system performance.


I/O Features:
  • Tri-state I/O registers:

  • -  high speed enable/disable
  • FastCLK I/O buffers:

  • -  very fast CLK-to-out, setup and hold
  • 3.3V and 5V PCI-compliant
  • 12mA or 24mA output drive
  • VersaRingTM I/O interface for pin-locking capability
Over 200 MHz Chip-Chip Speeds
4K Chip-Chip Speeds

Architectural Features:
  • SelectRAM memory

  • -  fully synchronous single-port or
       dual-port RAM
  • Segmented routing resources deliver high performance at high capacities
  • More clock buffering

  • -  similar performance, from 30,000
       to 500,000 gates
Over 300 MHz Internal Speeds
4K Internal Speeds

Less than Half the Power Consumption
An XC4000XLA device consumes 50% of the power of the equivalent XC4000XL device.  And the XC4000XV device only consumes 30% of the power.  These savings are derived from efficient design layout, smaller process geometries, and lower operating voltages.


Low Power Consumption:
  • 0.35/0.25 micron 5LM process
  • Efficient design optimized for minimal power consumption
  • Reduced core operating voltage saves power

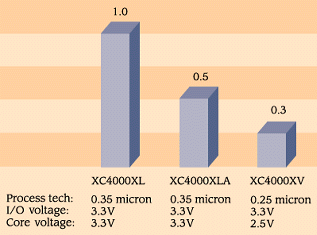

Relative Power Consumption
4K Power



New Software Delivers Very Fast Compile Times
Our new Alliance SeriesTM and Foundation SeriesTM version 1.5 software delivers increased performance in less than half the time.  Offered in both Alliance and Foundation platforms, version 1.5 introduces these powerful new tools.


A.K.A.speedTM Technology

  • Graphical Constraints Editor
  • Voltage and Temperature Pro-rating
  • Minimum Timing Delays
  • Graphical Floorplanner
50% Faster Compile Times Alliance and Foundation Series
  • Powerful timing-driven placement and routing
  • Static time verification
  • Dramatic productivity gains using the CORE Generator system for automatic logic generation
  • Highest performance with industry-leading synthesis vendors
  • Industry standard interfaces:  VHDL, Verilog, EDIF, SDF

 XC4000XLA Family

  XC4013XLA XC4020XLA XC4028XLA XC4036XLA XC4044XLA XC4052XLA XC4062XLA XC4085XLA
Logic Cells 1,368 1,862 2,432 3,078 3,800 4,598 5,472 7,448
System Gates 10-30K 13-40K 18-50K 22-65K 27-80K 33-100K 40-130K 75-200K
Max. RAM Bits 18,432 25,088 32,768 41,472 51,200 61,952 73,728 100,352
User I/O 192 224 256 288 320 352 384 448
Packages PQ160 PQ160 HQ160 HQ160 HQ160 HQ160 HQ160 HQ160
  PQ208 PQ208 HQ208 HQ208 HQ208 HQ208 HQ208 HQ208
  PQ240 PQ240 HQ240 HQ240 HQ240 HQ240 HQ240 HQ240
          HQ304 HQ304 HQ304 HQ304
  BG256 BG256 BG256
      BG352 BG352 BG352 BG352 BG352 BG352

      BG432 BG432 BG432 BG432 BG432
            BG560 BG560 BG560


XC4000XL Family



XC4002XL XC4005XL XC4010XL XC4013XL XC4020XL XC4028XL XC4036XL XC4044XL XC4052XL XC4062XL XC4085XL
Logic Cells
152
466
950
1,368
1,862
2,432
3,078
3,800
4,598
5,472
7,448
System Gates
1.5-4K
3-10K
7-20K
10-30K
13-40K
18-50K
22-65K
27-80K
33-100K
40-130K
55-180K
Max. RAM Bits
2,048
6,272
12,800
18,432
25,088
32,768
41,472
51,200
61,952
73,728
100,352
User I/O
64
112
160
192
224
256
288
320
352
384
448
Packages
PL84
PL84
PL84









PQ100
PQ100
PQ100










PQ160
PQ160
PQ160
PQ160








PQ208
PQ208
PQ208
PQ208










PQ240
PQ240












HQ160
HQ160
HQ160









HQ208
HQ208
HQ208









HQ240
HQ240
HQ240
HQ240
HQ240







 HQ304
 HQ304
HQ304
HQ304
HQ304


VQ100
VQ100











TQ144
TQ144











TQ176












HT144
HT144










HT176
HT176









BG256
BG256
BG256
BG256











BG352
BG352
BG352










BG432
BG432
BG432
BG432
BG432









BG560
BG560
BG560






PG299












PG411
PG411
PG411












PG475












PG559
