XC4000E-1 Is The Fastest 5V FPGA!
Xilinx reinforces its technology leadership in programmable logic with the XC4000E-1 introduction. The industry's fastest five-volt FPGA enhances the performance of the popular XC4000 Series by 25 percent.

Fastest 5-Volt FPGA

Based on running real customer designs as well as over 650 typical, scaleable benchmark designs, the XC4000E-1 outperforms competing devices by 5 to 20%.

The most successful FPGA gets 25% faster!!!
The XC4000/E is the most successful product family in the PLD industry. The XC4000E-1 being fully backward compatible with previous XC4000E devices ensures an instant performance gain to the very large XC4000/E user base.

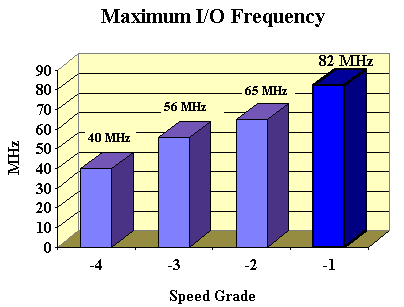

The XC4000E-1 offers a 25% performance improvement over the XC4000E-2 in maximum I/O frequency.  Performance of the XC4000E family has more than doubled.

Maximum I/O Frequency = 1/(Global Clock-to-Out  +  Global Set-Up)




  XC4003E XC4005E XC4006E XC4008E XC4010E XC4013E XC4020E XC4025E
Logic Cells 238 466 608 770 950 1,368 1,862 2,432
Typical Gate Range 2-5K 3-10K 4-12K 6-15K 7-20K 10-30K 13-40K 15-45K
Max. RAM bits 3K 6K 8K 10K 13K 18K 25K 33K
Flip-Flops 360 616 768 936 1,120 1,536 2,016 2,560
I/O 80 112 128 144 160 192 224 256
