Foundation and Alliance Series Software version 1.4 now shipping

Xilinx is now shipping its latest Software Solutions, Foundation Series Express 1.4 and Alliance Series 1.4, which are based on M1 Technology.

Xilinx Foundation Series Express (1.4), available for PCs running Windows '95 and Windows NT, integrates Xilinx's Design Implementation Tools with the very popular Foundation Design Entry Tools. The Foundation Standard package (US-FND-EXP-PC) includes these well integrated and easy to use design entry tools:

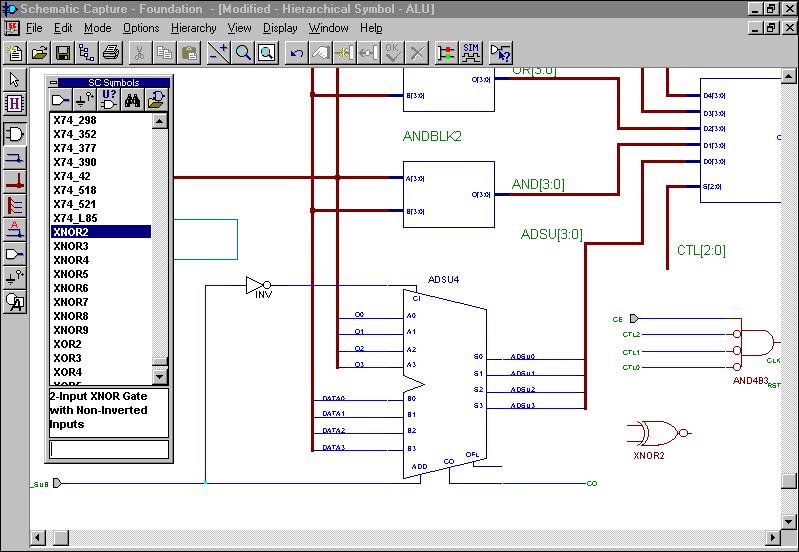

Schematic Entry

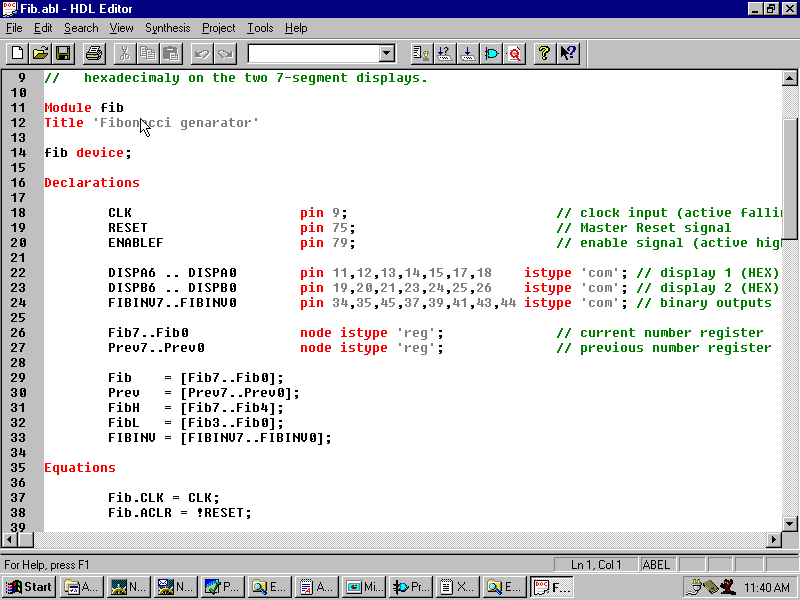

HDL Text Entry - includes ABEL Synthesis and Language Assistance

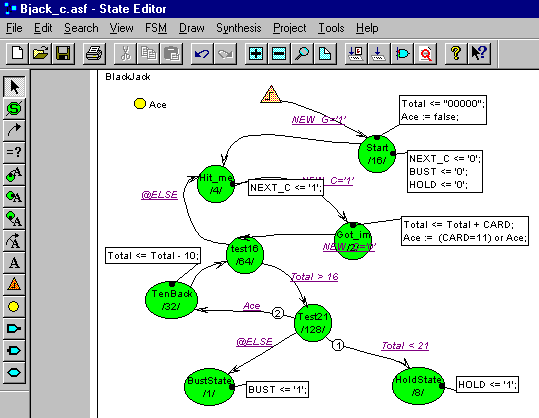

Graphical State Editor - creates state diagrams and compiles them into HDL code

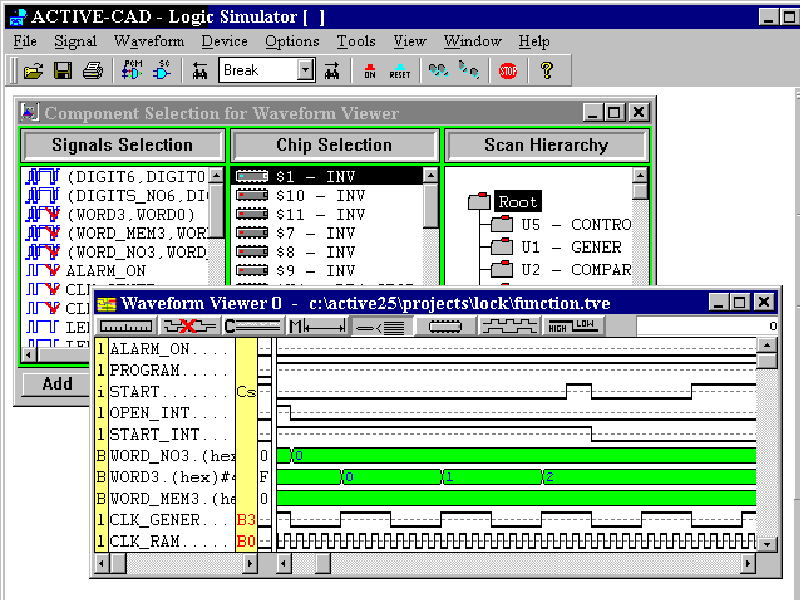

Simulation and Graphical Waveform Editor - functional and timing driven
VHDL and Verilog Synthesis - Now available with Foundation Series Express 1.4

Foundation Series Express 1.4 has several improvements over Foundation Series 1.3

.

Xilinx Alliance Series software (1.4), available for both workstations and PCs, integrates Xilinx's Design Implementation Tools with all libraries and interfaces for Synopsys, Viewlogic, Mentor, and Cadence. Other design entry tool vendors, such as OrCAD, Synplicity, Synario provide Xilinx libraries and interfaces in their own software packages.

Request your Foundation Express "license.dat" file

If you are a university instructor, you have received a commercial Foundation Series Express 1.4 upgrade, and you want to take advantage of the new VHDL and Verilog synthesis features, then then you need to get a new "license.dat" file for your PC(s). Please follow these steps:

Step 1) Fill in the "license.dat" file request form and Xilinx customer service will provide you with your new "license.dat" file within 2 business days.

Step 2) Read over the important Foundation Express usage information.

Step 3) If you do not receive a response within 2 business days, you can contact a Xilinx customer service representative directly.

Xilinx Customer Service Representatives for Universities:

Location	Contact	Telephone	Fax	Email / Website
USA & Canada	Xilinx Customer Service	800-624-4782	408-559-0115	univlic@xilinx.com
EuroPractice Members	EuroPractice	+44 (0)1235 44 5327	+44 (0)1235 44 5546	europractice_sss@rl.ac.uk http://www.te.rl.ac.uk/europractice/univs/toc.html
CIC Taiwan members	- CIC - Memec Taiwan	+886-3-577-3693 +886-2-760-2028	+886-3-577-4064 +886-2-765-1488	http://www.cic.edu.tw/
IDEC S.Korea members	- IDEC - Seodu Logic	+82-42-866-0813 +82-2-563-6433	+82-42-866-0803 +82-2-562-4657	http://idec.kaist.ac.kr/
All Other Locations	Local Xilinx Distributor			http://www.xilinx.com/company/sales/int_reps.htm

M1 Technology versus XACTstep

This table provides a basic comparison of XACTstep^TM v5.2 / 6.0 Software versus Xilinx M1-based Implementation Software. Version 1.3 Implementation Software is common to both the Xilinx Alliance Series and the Xilinx Foundation Series.

	XACTstep Software v5.2.x (WS) / v6.0.x (PC)	New M1-based Implementation Software, v1.3
Operating System	WS = SunOS, HP Unix, Solaris* PC = DOS, Windows 3.1x, Windows '95*	WS = SunOS, HP Unix, Solaris PC = Windows '95, Windows NT
Binary code is...	16 bit	32 bit (No more DOS windows ! )
Graphical User Interface	- Command Line only on Workstation - Graphical Push Button on Windows - Command Line on DOS	- Graphical Push Button on WS and PC - Command Line option available on WS and Windows
Netlist Format(s)	Xilinx Netlist Format (XNF) only	EDIF 2.0.0 is default. XNF also accepted.
Place & Route	PPR algorithm - Best case 85% CLB utilization	PAR algorithm from NeoCAD - Typical 95% CLB utilization on XC4000EX/XL - 100% utilization possible - Faster compile times, especially on XC4000EX, 4000XL, andXC9500
Xilinx Family Support	XC2000, XC3x00/A, XC4000/L/A/E, XC5000, XC7300, XC9500**	XC4000L/E/EX/XL, XC9500, XC3x00A*, XC5000*
Licensing	WS = Highland License Manager - Floating Licenses or Single Node PC = XKEY program & physical key - Single Node	WS & PC = Flex LM Software - Floating Licenses**** or Node Locked

*       XACTstep v5.2/6.0 software runs on these operating systems, but it has not been 100%
         qualified for those OS's.
**     XC9500 operation under v6.0 required modification of DOS & Windows path variables.
         M1 Technology completely integrates the XC9500 family.
***   XC3x00A and XC5000 family support will be included in the 1.4 release sometime near
         the end of 1997.
         Note that the older XC4000 and XC4000A devices are NOT be supported with M1.
**** The default version 1.3 license type for the PC is Node Locked. Inform Xilinx customer
         service or your Xilinx representative if you need floating licenses on your TCP compliant
         PC network.
