Within one year of launching the original Virtex series,
Xilinx has raised the bar yet again by introducing the next
generation 1.8-volt Virtex-E family that enhances all aspects
of the Virtex attributes. Fabricated on a leading edge 0.18
um, six-layer metal silicon process, the Virtex-E family has
significantly increased both performance and density, while
providing a high-performance system level feature set that
further addresses the bandwidth requirements of the next
generation data communication and DSP applications. The
advanced high-performance feature set of the Virtex series
includes:
- Densities ranging from 50,000 to 3.2 million system
gates
- Support for 20 I/O standards, including three
differential signaling standards
- Over 311 Mbps single-ended I/O performance
- 622 Mbps differential I/O performance
- Up to 832 Kbits of internal True Dual-Port(TM)
BlockRAM
- 8 DLLs for 311+ MHz clock management
- Up to 804 single-ended I/Os or 344 differential I/O
pairs
- Direct interfacing to high performance memory
devices
- A complete package
offering including high pin count, high thermal dissipation,
and low-cost package
Since it is fully supported by Xilinx(TM) Alliance
Series(TM) and Foundation Series(TM) software, as well as all
of the EDA tools from Xilinx Alliance partners, the Virtex
series is a complete solution ready to meet the challenges of
next generation designs. The available software also includes
the built-in CORE Generator(TM) tool with a variety of web
downloadable Smart-IP(TM) BaseBlox(TM) cores. The Virtex
solution helps system designers quickly create very complex
designs with guaranteed results.
The First FPGA Solution to Deliver Over 100 Gigabits Per
Second (Gbps) I/O Bandwidth
With the growth of the Internet fueling the need for higher
data transfer rate, system designers are constantly challenged
to maximize the bandwidth of their data communication systems.
Bandwidth is a key differentiator for many end products. The
fact that computing architectures are now measured in million
of instructions per second (MIPS) and data communication
systems are measured in gigabits per second (Gbps) further
underscores the importance of bandwidth. The Virtex-E family
couples advanced DLLs
with high-performance SelectI/O+(TM) and SelectLink(TM)
technologies that deliver I/O performance at over 311 Megabits
per second (Mbps). This enables Virtex-E family to support
high performance systems that require bandwidth of over 100
Gbps.
SelectI/O+ Technology
- 20 single-ended and differential signaling standards are
supported by all I/Os
- Up to 344 pairs of differential I/O pairs supporting
LVPECL, Bus LVDS, and LVDS
- Up to 804 single-ended I/Os at over 311 Mbps each
- 622 Mbps LVDS and LVPECL performance
- Simultaneous support of multiple voltages by all I/Os
(1.8, 2.5, 3.3, and 5*** volts
SelectLink
Technology
- Double-Data Rate (DDR) Virtex-E to Virtex-E link
- Bandwidth of 300+ Mbps per pin
- 19.2 Gbps with 64-bit data-path using SSTL2
- Built-in FIFOs and flow-control
- Web-based HDL generation methodology
- User enters internal and external bus-widths, FIFO
resources, and I/O standard selection
- HDL (Verilog/VHDL) modules generated in second
Table 1. I/O Standards Supported by Virtex-E Family
Standard |
Typical Application |
LVTTL |
3.3 V General Purpose |
LVCMOS2 |
2.5 V General Purpose |
LVCMOS18** |
1.8 V General Purpose |
PCI33_5* |
33/66 MHz 5 V PCI Backplane |
PCI33_3, PCI66_3 |
33/66 MHz 3.3 V PCI Backplane |
SSTL2 (I,II), SSTL3(I,II), CTT |
SDRAM, DDR SRAM |
HSTL(I,III,IV) |
SRAM, DDR SDRAM, Backplanes |
GTL, GTL+, AGP |
Backplanes, Microprocessor Interfacing |
LVDS** |
Point-to-Point Backplanes, High Noise
Immunity |
BLVDS** |
Bus LVDS Backplanes, High Noise Immunity, Bus
Architecture Backplanes |
LVPECL** |
High Performance Clocking, Backplanes, Differential
100MHz+ Clocking, Optical Transceiver, High Speed
Networking, and Mixed-Signal Interfacing |
5
V TTL***( 4mA Iol ) |
Legacy 5V TTL
Interfacing | |
* Supported by Virtex family only ** Supported by
Virtex-E family only *** Requires 100 Ohm external
resistor for Virtex-E family
The First FPGA Solution To Deliver Complete
High-Performance Differential Signaling Support
As the need for higher bandwidth continues to accelerate,
system designers are turning to differential signaling as the
mechanism of choice to satisfy high bandwidth requirements
while reducing power, increasing noise immunity, and
decreasing EMI emissions. The Virtex-E family delivers the
industry's highest bandwidth and the most flexible
differential signaling solution. The selectI/O+ technology
offers direct interfacing to Low Voltage Positive Emitter
Coupled Logic (LVPECL), Low
Voltage Differential Signaling (LVDS), and Bus LVDS
(BLVDS) differential I/O standards. The Virtex-E family offers
a hierarchy of differential support, including up to 36 pairs
for LVDS and LVPECL at 622 Mbps, and up to 344 differential
pairs at over 311 Mbps. High performance and flexibility of
the differential solution enables the Virtex-E family to
provide multiple 10 Gbps ports while maintaining high signal
integrity. Unlike other PLD solutions, all Virtex-E
differential I/Os support input, output, and I/O signaling,
providing system designers with the unparalleled flexibility
to create interfaces to industry standard differential
signaling devices. In addition, Virtex-E BLVDS capability can
also support multiple configurations including standard
Point-to-Point, Multi-Point data distribution and Multi-Drop
bus configurations. This feature allows designers to customize
their high-performance backplane applications while maximizing
overall bandwidth. |
Table 2. Virtex-E Family LVDS and BLVDS Support
Configuration/ Differential
Signaling |
LVDS |
Bus LVDS |
Point-to-Point |
Yes |
Yes |
Multi-Drop |
No |
Yes |
Multi-Point |
No |
Yes |
Table 3. Virtex-E Aggregate Bandwidth Summary
I/O Standard |
Type |
Number of Device I/O Pins |
1 |
2 |
32 |
72 |
688 |
804 |
SSTL |
Single Ended |
311 Mbps |
622 Mbps |
10 Gbps |
22 Gbps |
214 Gbps |
250 Gbps |
HSTL |
Single Ended |
311 Mbps |
622 Mbps |
10 Gbps |
22 Gbps |
214 Gbps |
250 Gbps |
GTL+ |
Single Ended |
311 Mbps |
622 Mbps |
10 Gbps |
22 Gbps |
214 Gbps |
250 Gbps |
LVDS |
Differential |
n/a |
622 Mbps |
10 Gbps |
22 Gbps |
107 Gbps |
n/a |
LVPECL |
Differential |
n/a |
622 Mbps |
10 Gbps |
22 Gbps |
107 Gbps |
n/a |
Bus LVDS |
Differential |
n/a |
311 Mbps |
5 Gbps |
11 Gbps |
107 Gbps |
n/a |
The First FPGA To Provide High-Performance
Clocking
LVPECL clocking becomes an essential requirement as FPGA
system clock frequencies exceed 100 MHz. The Virtex-E device
supports high-performance LVPECL clock inputs for global and
local clocking with frequencies in excess of 300 MHz. In
addition, through the use of multiple DLLs and SelectI/O+
technology, Virtex-E devices enable zero-delay conversion of
precise LVPECL clocks into virtually any required I/O
standard. These features allow Virtex-E FPGAs to become an
integral part of high-performance board-level clock
distribution strategies.
The First FPGA To Deliver Terabits Per Second (Tbps)
Memory Bandwidth
The Virtex series offers a hierarchy of memory resources
employing the SelectRAM+ technology. The Virtex series
delivers up to 208 blocks of synchronous 4 Kbits True
Dual-Port(TM) RAM (832-Kb total) - twice the memory resources
of any other programmable logic family available today. With
internal Block RAM performance that reaches 250 MHz, coupled
with True Dual-Port capability, the Virtex series can deliver
up to 1.66 Tbps of memory bandwidth, which is ideal for

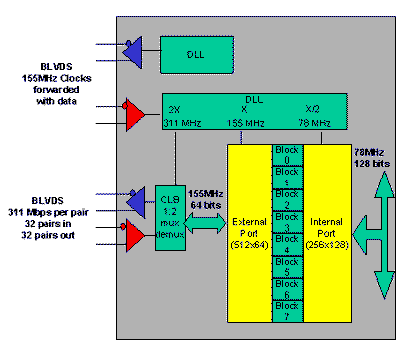

buffering multiple high-performance data ports. The following
diagram illustrates how Virtex-E devices meet the bandwidth
requirement for an OC-192 application.
![](Virtex_overview_files/buffering.gif)
The Virtex series also offers over 1Mbits of distributed
RAM, which is ideal for high-speed data processing
applications. Furthermore, with the enhanced performance
provided by the SelectI/O+ and DLL capabilities of the
Virtex-E family, the Virtex series can directly interface to
high performance memory devices including 200 MHz ZBT SRAMs,
266 MHz DDR SDRAMs, and future QDR SRAMs. The precise 50/50
duty cycle generation of DLLs makes the Virtex series ideally
suited for high-performance DDR applications.
|
Virtex SelectRAM+ Memory
Hierarchy |
Distributed SelectRAM+
Memory |
|
Block SelectRAM+ Memory |
|
High-Speed External Memory
Interface |
The vast array of configurable
logic blocks (CLBs) are each configurable as a 16x1, 16x2,
16x3, 16x4, 32x1 or 32x2 synchronous RAM, or as a 16x1, 16x2
or 32x1 dual-port synchronous RAM |
|
Dedicated blocks of on-chip 4 Kbit
True Dual-Port synchronous RAM for critical high-bandwidth
memory, configurable as 4Kx1, 2Kx2, 1Kx4, 512x8, and 256x16 |
|
Direct interface to:
- 133 MHz SDRAM
- 200 MHz ZBT SRAM
- 266 MHz DDR SDRAM
- Future QDR SRAM |
The Virtex Series Solution:
Leading-Edge Software and Intellectual Property (IP)
Support
The Virtex architecture was designed in conjunction with
our synthesis partners in order to assure maximum performance,
predictability, and simplified integration of intellectual
property. The Xilinx solution includes:
- Complete Virtex series support in Alliance Series and
Foundation Series software, both of which feature powerful
implementation tools to maximize performance while enhancing
productivity
- Optimized place and route algorithms that provide a 50%
reduction in compile time as compared to the previous
software release
- Team-based design environment, through Xilinx Internet
Team Design (Xilinx iTD(TM)) tool,that increases
productivity for multi-module designs
- Support for third party signal analysis tools which
ensures clean signal integrity (Alliance Series only)
- Smart-IP technology and CORE Generator tools that enable
high design productivity
- BaseBlox cores that have been highly optimized for
performance and utilization
- The Real-PCI(TM) 64/66 and 32/33 LogiCORE(TM) solutions
that are fully PCI compliant
- A variety of AllianceCORE(TM) products which span a
breadth of applications in communications, networking, video
and image processing, computing, and other market
segments
Summary
The revolutionary 2.5-volt Virtex family of FPGAs broke new
density and performance barriers by expanding the traditional
usage of the programmable logic, delivering the first FPGA
platform that truly addressed system-level design challenges.
With the introduction of the next generation 1.8-volt Virtex-E
family, Xilinx has taken FPGA performance to the next level,
thereby providing a compelling alternative to ASIC solutions.
Virtex series consists of two high-performance FPGA families
that range in density from 50,000 to 3,200,000 system gates
with up to 622 Mbps I/O performance. The Virtex series
features advanced DLLs for high-performance clock management,
a hierarchy of memory resources, and I/Os capable of
simultaneously interfacing to twenty voltages and signaling
standards. The Virtex series solution combines maximum I/O and
memory bandwidths with leading-edge software and IP support in
order to deliver a solution that best addresses the bandwidth,
cost and time-to-market challenges of the next generation data
communication and DSP applications.
|
| |
|
|
