Instructions

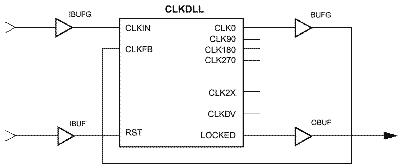

The circuit shown below resembles the BUFGDLL macro implemented
in such a way as to provide access to the RST and LOCKED pins of
the CLKDLL.
VHDL
library ieee;
use ieee.std_logic_1164.all;
library unisim;
use unisim.vcomponents.all;
entity dll_standard is
port (CLKIN : in std_logic;
RESET : in std_logic;
CLK0 : out std_logic;
LOCKED: out std_logic);
end dll_standard;
architecture structural of dll_standard is
signal CLKIN_w, RESET_w, CLK0_dll, CLK0_g, LOCKED_dll : std_logic;
begin
clkpad : IBUFG port map (I=>CLKIN, O=>CLKIN_w);
rstpad : IBUF port map (I=>RESET, O=>RESET_w);
dll : CLKDLL port map (CLKIN=>CLKIN_w, CLKFB=>CLK0_g, RST=>RESET_w,
CLK0=>CLK0_dll, CLK90=>open, CLK180=>open, CLK270=>open, CLK2X=>open,
CLKDV=>open, LOCKED=>LOCKED_dll);
clkg : BUFG port map (I=>CLK0_dll, O=>CLK0_g);
clkpad : OBUF port map (I=>LOCKED_dll, O=>LOCKED);
CLK0 <= CLK0_g;
end structural;
Verilog
module dll_standard (CLKIN,
RESET, CLK0, LOCKED);
input CLKIN, RESET;
output CLK0, LOCKED;
wire CLKIN_w, RESET_w, CLK0_dll, LOCKED_dll;
IBUFG clkpad (.I(CLKIN), .O(CLKIN_w));
IBUF rstpad (.I(RESET), .O(RESET_w));
CLKDLL dll (.CLKIN(CLKIN_w), .CLKFB(CLK0), .RST(RESET_w), .CLK0(CLK0_dll),
.CLK90(), .CLK180(), .CLK270(), .CLK2X(), .CLKDV(), .LOCKED(LOCKED_dll));
BUFG clkg (.I(CLK0_dll), .O(CLK0));
OBUF lckpad (.I(LOCKED_dll), .O(LOCKED));
endmodule
|
