Board Level Deskew of Multiple Spartan-II Devices

Sparty's Favorite Recipes 005 KIss Your ASIC Good-bye!

Ingredients:

  • Any Spartan-II Device
  • 2.1i Development System
  • VHDL or Verilog
  • Nutritional Analysis:

  • DLLs: 2
  • Instructions

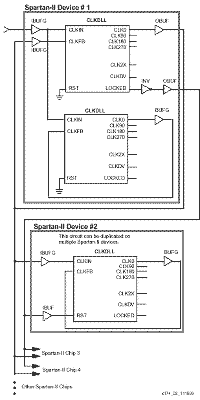

    The circuit shown below can be used to deskew a system clock between multiple Spartan-II chips on the same board. While designing the board level route, ensure that the return net delay to the source equals the delay to the other chips involved. Do not use the DLL output clock signals until after activation of the LOCKED signal. Prior to the activation of the LOCKED signal, the DLL output clocks are not valid and can exhibit glitches, spikes, or other spurious movement.

    VHDL

    -- Requires external connection of CLK0_ext to CLKFB on the board.
    --

    library ieee;
    use ieee.std_logic_1164.all;
    library unisim;
    use unisim.vcomponents.all;

    entity dll_mirror_2 is
    port (CLKIN : in std_logic;
    CLKFB : in std_logic;
    CLK0_ext : out std_logic;
    CLK0_int : out std_logic;
    NOT_LOCKED : out std_logic);
    end DLL_mirror_2;

    architecture structural of DLL_mirror_2 is

    signal CLKIN_w, CLKFB_w, CLK0_int_DLL, CLK0_int_g, CLK0_ext_DLL : std_logic;
    signal LOCKED_ext_DLL, NOT_LOCKED_w : std_logic;
    signal logic0 : std_logic;

    begin

    logic0 <= '0';

    clkpad : IBUFG port map (I=>CLKIN, O=>CLKIN_w);
    clkfbpad : IBUFG port map (I=>CLKFB, O=>CLKFB_w);

    dllint : CLKDLL port map (CLKIN=>CLKIN_w, CLKFB=>CLK0_int_g, RST=>logic0, CLK0=>CLK0_int_DLL, CLK90=>open, CLK180=>open, CLK270=>open, CLK2X=>open, CLKDV=>open, LOCKED=>open);

    dllext : CLKDLL port map (CLKIN=>CLKIN_w, CLKFB=>CLKFB_w, RST=>logic0, CLK0=>CLK0_ext_DLL, CLK90=>open, CLK180=>open, CLK270=>open, CLK2X=>open, CLKDV=>open, LOCKED=>LOCKED_ext_DLL);

    clkg : BUFG port map (I=>CLK0_int_DLL, O=>CLK0_int_g);
    clkextpad : OBUF port map (I=>CLK0_ext_DLL, O=>CLK0_ext);

    CLK0_int <= CLK0_int_g;

    NOT_LOCKED_w <= not LOCKED_ext_DLL;

    notlckpad : OBUF port map (I=>NOT_LOCKED_w, O=>NOT_LOCKED);

    end structural;

    Verilog

    // Requires external connection of CLK0_ext to CLKFB on the board.
    //

    module DLL_mirror_2 (CLKIN, CLKFB, CLK0_ext, CLK0_int, NOT_LOCKED);
    input CLKIN, CLKFB;
    output CLK0_ext, CLK0_int, NOT_LOCKED;

    wire CLKIN_w, CLKFB_w, CLK0_int_DLL, CLK0_ext_DLL;
    wire LOCKED_ext_DLL, NOT_LOCKED_w;
    wire logic0;

    assign logic0 = 1'b0;

    IBUFG clkpad (.I(CLKIN), .O(CLKIN_w));
    IBUFG clkfbpad (.I(CLKFB), .O(CLKFB_w));

    CLKDLL dllint (.CLKIN(CLKIN_w), .CLKFB(CLK0_int), .RST(logic0),
    .CLK0(CLK0_int_DLL), .CLK90(), .CLK180(), .CLK270(),
    .CLK2X(), .CLKDV(), .LOCKED());

    CLKDLL dllext (.CLKIN(CLKIN_w), .CLKFB(CLKFB_w), .RST(logic0),
    .CLK0(CLK0_ext_DLL), .CLK90(), .CLK180(), .CLK270(),
    .CLK2X(), .CLKDV(), .LOCKED(LOCKED_ext_DLL));

    BUFG clkg (.I(CLK0_int_DLL), .O(CLK0_int));
    OBUF clkextpad (.I(CLK0_ext_DLL), .O(CLK0_ext));

    assign NOT_LOCKED_w = ! LOCKED_ext_DLL;
    OBUF notlckpad (.I(NOT_LOCKED_w), .O(NOT_LOCKED));

    endmodule
