Video System Glue

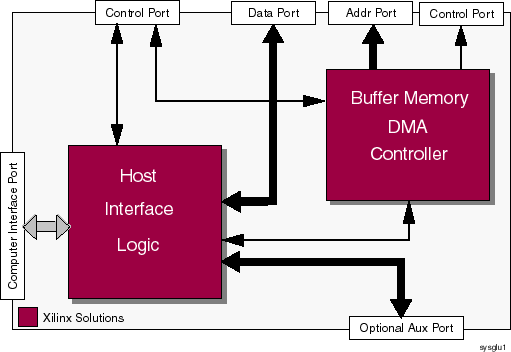

Video System Glue Block Diagram

(click in the burgundy areas for a Xilinx solution or click on the link below)

Video System Glue Block Diagram
Video Card Application Note


Functions

Depending on the underlying design the System Glue Logic will contain many common functions which we excel at.  These functions include memory control, DMA control, data buffering, and a control port interface which may be a discrete parallel port design, or it may be an interface to a USB ASSP or even a PCI Core.

Advantages

Xilinx programmable logic excels at all these functions and offers very low cost devices which can do them well. In particular, the SpartanXL and XC9500XL devices offer the advantages of high performance combined with low cost and support such features as the ability to integrate a 33 MHz, 32-bit PCI solution into a SpartanXL device.

Xilinx also offers the advantage of configuring the logic over the computer interface which has all the benefits of field upgradability and feature enhancement without touching the hardware itself.
