XC9500XL 3.3V CPLD Family
FastFLASH Logo

The all-new XC9500XL CPLD family is targeted for leading-edge systems that require rapid design development, longer system life, and robust field upgrade capability. This 3.3V in-system programmable family provides unparalleled performance and the highest programming reliability, with the lowest cost in the industry. The XC9500XL CPLDs also complement the higher density Xilinx FPGAs to provide a total logic solution, within a unified development environment.

XC9500XL Product Overview


XC9536XL
XC9572XL
XC95144XL
XC95288XL
Macrocells
36
72
144
288
Usable Gates
800
1,600
3,200
6,400
Registers
36
72
144
288
tPD (ns)
4
5
5
6
fSYSTEM (MHz)
200
178
178
151
User I/O Pins
44-pin PLCC
34
34

64-pin VQFP
36
52

100-pin TQFP

72
81

144-pin TQFP

117
117
208-pin PQFP

168
48-pin CSP
36
38

144-pin CSP

117

256-pin BGA

192

Family Highlights
  • Fastest speed at lowest cost
  • State-of-the-art pin-locking architecture
  • Highest programming reliability reduces system risk
  • Complements Xilinx 3.3V FPGA families

Features
Benefits
  • Highest performance 4ns/200MHz
  • Leading-edge computing applications
  • Most flexible pin-locking architecture
  • Design iterations without board rework
  • Highest device reliability
  • Higher quality, reduced support cost
  • Smallest packages (CSP)
  • Reduced board area, increased flexibility
  • In-system programming via JTAG
  • Compatible with industry-standard ISP
  • Robust 5V, 3.3V, 2.5V interfacing
  • Worry-free mixed voltage operation
  • 3rd generation FastFLASH process
  • Fast programming, rapid cost reduction

Unprecedented Performance
  • 4 ns pin-to-pin speed
  • 200 MHz system frequency
Powerful Architecture
  • Wide 54-input function blocks
  • Up to 90 product-terms per macrocell
  • Fast and routable FastCONNECT II switch matrix
  • Three global clocks with local inversion
  • Individual OE per output, with local inversion

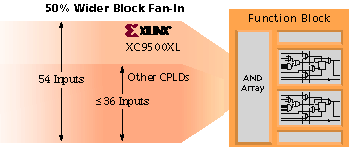

Block Fan-In

Highest Reliability
  • Endurance rating of 10,000 cycles
  • Data retention rating of 20 years
  • Immune from “ISP Lock-Out” failure mode
  • Allows arbitrary mixed-power sequencing and waveforms

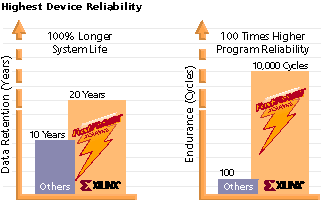

Highest Device Reliability

Advanced FastFLASH Technology
  • 3rd generation, proven FastFLASH CPLD technology
  • Mainstream, scalable, high-reliability processing
  • Fast in-system programming and erase times
  • Scalable FLASH technology reduces cost
Outperforms All Other 3.3V CPLDs
  • Extended data retention supports longer system operating life
  • Virtually eliminates in-system programming failures
  • Superior pin-locking for lower design risk
  • Glitch-free I/O pins during power-up
  • Full IEEE 1149.1 (JTAG) ISP and boundary-scan test
  • Unified software simplifies CPLD/FPGA logic partitioning
