Dual, T1/E1 Line Interface
|
|
|
|

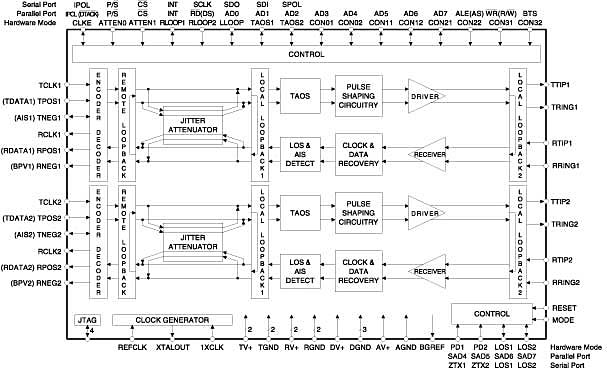

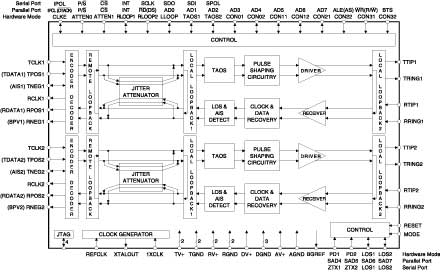

The CS61584A is a dual line interface for T1/E1 applications, designed for high-volume cards where low power and high density are required. The device is optimized for flexible micro-processor control through a serial or parallel host mode interface. Hardware mode operation is also available. Matched impedance drivers reduce power consumption and provide substantial transmitter return loss. The transmitter pulse shapes are customizable to allow non-standard line loads. Crystal-less jitter attenuation complies with most stringent standards. Support of JTAG boundary scan enhances system testability and reliability.
|
|
Product Features
|
|
- Dual T1/E1 line interface
- Crystal-less jitter attenuator meets European CTR 12 and ETSI ETS 300 011 specifications
- Matched impedance transmit drivers
- Transmitter tristate capability
- Common transmit and receive transformers for all modes
- Serial and parallel host mode operation
- User-customizable pulse shapes
- Supports JTAG boundary scan
- Compliant with
- ITU-T Recommendations: G.703, G.704, G.706, G.732, G.775, and I.431
- American National Standards (ANSI): T1.102, T1.105, T1.403, T1.408, and T1.231
- FCC Rules and Regulations: Part 68 and Part 15
- AT&T Publication 62411
- ETSI ETS 300 011, 300 233, CTR 12, TBR 13
- TR-NET-00499
- 3.3 and 5V versions
- Package: 68-pin PLCC< 64-pin TQFP
|
|
|
