GENERAL OVERVIEW
- Development Kit
based on AT91RM9200
- Processor Running
Frequency @ 180 MHz
- Bus Running Frequency
@ 60 MHz
- 9V to 14V DC-only
power supply - 1A
- On-board SDRAM,
DataFlash® and EEPROM Memories
- USB (Host and Device),
Fast Ethernet, Serial and IrDA communication port,
- Graphic Controller
with an external output to a standard VGA monitor,
- JTAG/ICE, ETM and
DBGU Debug Interface
- Expansion connector
|
|

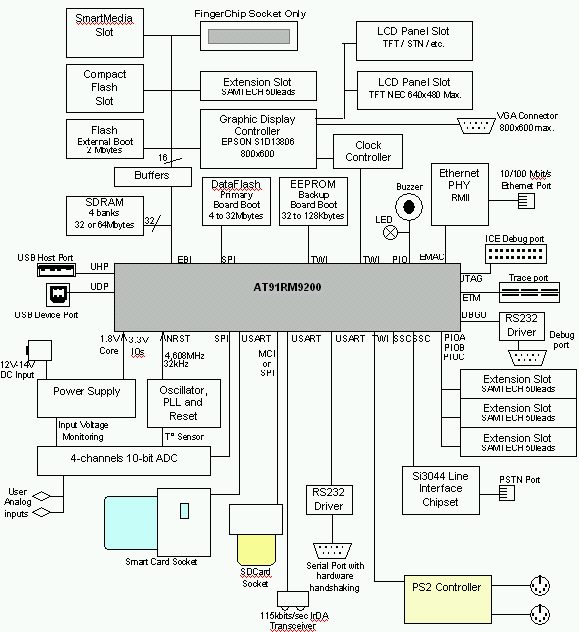

BLOCK OVERVIEW
Memory
- 2 Mbytes of parallel
flash memory:
- 2 M x 16-bit x
4 banks of SDRAM:
- 128-kbyte of EEPROM
- 2 wires:
- 8M-byte of Serial
DataFlash®:
Memory
Card
- SD Card / MMC:
- Support MultiMedia
and SD Card
- Analog Switches
allow supporting DataFlash Card ,
- Smart Media Socket,
- Compact Flash Socket,
- Smart Card Interface
,
Clock
Circuitry and Analog functions
- 32.768 kHz standard crsytal for the AT91RM9200,
- 4.608 MHz standard crystal for the AT91RM9200,
- 50 MHz CMOS Oscillator
for the Display Controller,
- Temperature sensor ,
- Analog to Digital converter ,
- FingerChip (Socket only) ,
Reset
Circuitry
- A Reset Controller
.
Power
Supply Circuitry
- 3.3V DC/DC Converter
,
- 1.8V DC/DC Converter
.
Remote
Communication
- Fast Etherent Physical
Layer Single Chip Transceiver ,
- PS2 Serial Controller
,
- IrDA Transceiver
,
- Host interface
via RS-232 DB9-Male socket ,
- Line Interface
- Debug Port via
RS-232 DB9 connector .
- Host and Device
USB Socket,
User
Interface
- Graphic Display
Controller .
- TFT/SNT/... Panel
Socket,
- 15- pins standard
socket for an external VGA monitor,
- On-board Buzzer
and one led managed through general PIO lines,
Expansion
Slot
- All the micrcontroller's
signals are availble from 3 slot expansion:
|
J3
- J4 - J5 - J6
|
Microcontroller
Signal Expansion
- Catalog Page -
|
|
|
Microcontroller
Signal Expansion
- Foot Print -
|
|
Debug
Interface
- 38-pin Trace Port
Socket:
|
J7
|
Trace
Port Socket - Catalog Page -
|
|
|
Trace
Port Socket - Catalog Page -
|
|
- 20-pin JTAG interface
connector
- Serial Debug Unit.
|
