The XC9500XL CPLD family is targeted for leading-edge systems that require rapid design development, longer system life, and robust field upgrade capability. This 3.3V in-system programmable family provides unparalleled performance and the highest programming reliability, with the lowest cost in the industry. The XC9500XL CPLDs also complement the higher density Xilinx FPGAs to provide a total logic solution, within a unified development environment. The XC9500XL family is fully WebPOWERED via its free WebFITTER and WebPACK™ ISE™ software.

Family Highlights

Lowest cost per macrocell State-of-the-art pin-locking architecture Highest programming reliability reduces system risk Complements Xilinx 3.3V FPGA families

Features	Benefits
Highest performance 5ns/222Mhz	Leading-edge computing application
Most flexible pin-locking architecture	Design iterations without board rework
Highest device reliability	Higher quality, reduced support cost
Smallest packages (CSP)	Reduced board area, increased flexibility
In-system programming via JTAG	Compatible with industry-standard ISP
Robust 5V, 3.3V, 2.5V interfacing	Worry-free mixed voltage operation
WebFITTER & WebPACK	Easily accessible and free software tools saves development time and cost

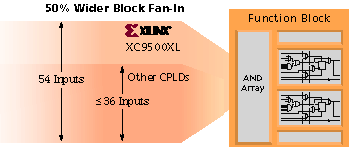

Unprecedented Performance 5 ns pin-to-pin speed 222 MHz system frequency Powerful Architecture Wide 54-input function blocks Up to 90 product-terms per macrocell Fast and routable FastCONNECT II switch matrix Three global clocks with local inversion Individual OE per output, with local inversion

Highest Reliability Endurance rating of 10,000 cycles Data retention rating of 20 years Immune from "ISP Lock-Out" failure mode Allows arbitrary mixed-power sequencing and waveforms Advanced Technology 3rd generation, proven CPLD technology Mainstream, scalable, high-reliability processing Fast in-system programming and erase times Outperforms All Other 3.3V CPLDs Extended data retention supports longer system operating life Virtually eliminates in-system programming failures Superior pin-locking for lower design risk Glitch-free I/O pins during power-up Full IEEE 1149.1 (JTAG) ISP and boundary-scan test Free WebPOWERED software

	XC9536XL	XC9572XL	XC95144XL	XC95288XL
Macrocells	36	72	144	288
Usable Gates	800	1,600	3,200	6,400
Registers	36	72	144	288
tPD (ns)	5	5	5	6
fSYSTEM (MHz)	222	222	222	208
User I/O Pins
44-pin PLCC	34	34
44-pinVQFP	34	34
64-pin VQFP	36	52
100-pin TQFP		72	81
144-pin TQFP			117	117
208-pin PQFP				168
48-pin CSP	36	38
144-pin CSP			117
256-pin BGA				192
256-pin FBGA				192
280-pin CSP				192
