Xilinx Introduces the CoolRunner XPLA3 Family!

  What is a CPLD?
  Why use a CPLD?
  Why Xilinx CPLDs?
  Choosing a Xilinx CPLD
  Designing with CPLDs
  XC9500XV
  XC9500XL
  XC9500
  CoolRunner XPLA3
  Mature XPLA Families




Cool Module Design Contest

The CoolRunner™ XPLA3 eXtended Programmable Logic Array family of CPLDs is targeted for low power applications that include portable, handheld, and power sensitive applications. Each member of the XPLA3 family includes Fast Zero Power™ (FZP) design technology that combines low power AND high speed. With this design technique, the XPLA3 family offers true pin-to-pin speeds of 5.0 ns, while simultaneously delivering power that is <100µA (standby) without the need for special "power down bits" that negatively affect device performance.

XPLA3 Architecture

The XPLA3 architecture features a direct input register path, multiple clocks, JTAG programming, 5 volt tolerant I/Os and a full PLA structure. These enhancements deliver high speed coupled with the best flexible logic allocation which results in the ability to make design changes without changing pin-outs. The XPLA3 architecture includes a pool of 48 product terms that can be allocated to any macrocell in the logic block. This combination allows logic to be allocated efficiently throughout the logic block and support as many product terms as needed per macrocell. In addition, there is no speed penalty for using a variable number of product terms per macrocell.

XPLA3 Features and Benefits

Features
Benefits
  • Total CMOS architecture with FZP design technology

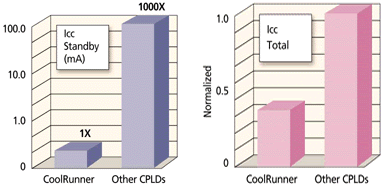

  • Lowest stand-by and total current consumption of any CPLD
  • 32 to 384 macrocell device selections
  • Full range of densities
  • Fast pin to pin timing 32 M/C - 5 ns
  • Perfect fit for high speed systems
  • 3.3 Volt operation with 5 Volt tolerant I/Os
  • Simplifies multivoltage system design
  • Full 36 by 48 PLA - Full Programmable AND / Programmable OR structure
  • Optimizes sharing and resource utilization (all product terms available)
  • Bus friendly I/O
  • Pull-up resistor for I/O termination
  • Multiple clocking options
  • Maximum clocking resources for design flexibility
  • Fast input registers
  • Supports direct high speed interface
  • VFM (Variable Function Mux) and Fold-back NANDs
  • Superior logic optimization and device fitting
  • Small, surface mount packages - .8mm and .5mm ball pitch Chip Scale BGAs
  • Smallest footprint and board space savings
  • Advanced 5 metal layer process technology
  • Lowest Cost
  • Industrial and Commercial temperature ranges
  • Full Industrial temperature and operating range (2.7 to 3.6 Volt)

XPLA3 Software Tools

Software support for XPLA3 devices is provided by Xilinx WebPOWERED software products which include WebFITTER and WebPACK. Both tools are free. In addition, EDIF input for all major 3rd party software flows such as Cadence, Mentor, Viewlogic, Exemplar and Synopsys are supported.

CoolRunner XPLA3 Family


XCR
3032XL
XCR
3064XL
XCR
3128XL
XCR
3256XL
XCR
3384XL
Macrocells
32
64
128
256
384
Usable Gates
800
1,600
3,200
6,400
9,600
tPD(ns)
5
6
6
7.5
7.5
f SYS (MHz)
175
145
145
140
127
Packages
(Max User I/O)
VQ44
(36)
VQ44
(36)

PC44
(36)
PC44
(36)

CS48
(36)
CS48
(40)


CP56
(48)

VQ100
(68)
VQ100
(84)

CS144
(108)

TQ144
(108)
TQ144
(120)


PQ208
(164)
PQ208
(172)

FT256
(164)
FT256
(212)

CS280
(164)
