Xilinx Introduces the CoolRunner XPLA3 Family!

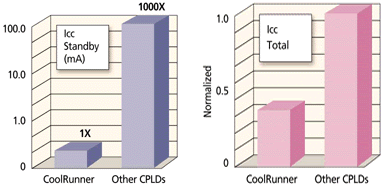

The CoolRunnerTM XPLA3 eXtended Programmable Logic Array family of CPLDs is targeted for low power applications that include portable, handheld, and power sensitive applications. Each member of the XPLA3 family includes Fast Zero PowerTM (FZP) design technology that combines low power AND high speed. With this design technique, the XPLA3 family offers true pin-to-pin speeds of 5.0 ns, while simultaneously delivering power that is  <100µA (standby) without the need for special "power down bits" that negatively affect device performance.

 Learn more about CoolRunner's Fast Zero Power feature:
PPTPDF

XPLA3 Family
XPLA3 Features and Benefits
XPLA3 Architecture
XPLA3 Software Tools
More Information

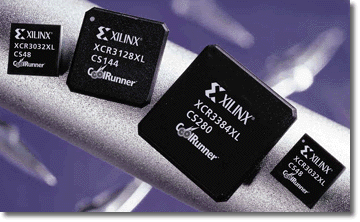

CoolRunner XPLA3 Family

  XCR3032XL XCR3064XL XCR3128XL XCR3256XL XCR3384XL
Macrocells
32
64
128
256
384
Usable Gates
750
1,500
3,000
6,000
9,000
tPD (ns)
5
6
6
7.5
7.5
fSYS (MHZ)
200
167
167
133
133
Packages





(Max. User I/Os)
44VQ (32)
44VQ (32)




48CS (32)
*48CS (32)





56CP (44)





100VQ (64)
100VQ (80)





144CS (104)





144TQ (104)
144TQ(104)





208PQ (160)





280CS (160)
280CS (216)
Preliminary Information
*Planned Package

XPLA3 Features and Benefits


Features

Benefits

  • Total CMOS architecture with FZP design technology
  • Lowest stand-by and total current consumption of any CPLD
  • 32 to 384 macrocell device selections
  • Full range of densities
  • Fast pin to pin timing 32 M/C - 5 ns
  • Perfect fit for high speed systems
  • 3.3 Volt operation with 5 Volt tolerant I/Os
  • Simplifies multivoltage system design
  • Full 36 by 48 PLA - Full Programmable AND / Programmable OR structure
  • Optimizes sharing and resource utilization (all product terms available)
  • Bus friendly I/O
  • Pull-up resistor for I/O termination
  • Multiple clocking options
  • Maximum clocking resources for design flexibility
  • Fast input registers
  • Supports direct high speed interface
  • VFM (Variable Function Mux) and Fold-back NANDs
  • Superior logic optimization and device fitting
  • Small, surface mount packages -  .8mm and .5mm ball pitch Chip Scale BGAs
  • Smallest footprint and board space savings
  • Advanced 5 metal layer process technology
  • Lowest Cost
  • Industrial and Commercial temperature ranges
  • Full Industrial temperature and operating range (2.7 to 3.6 Volt)

XPLA3 Architecture

The XPLA3 architecture features a direct input register path, multiple clocks, JTAG programming, 5 volt tolerant I/Os and a full PLA structure. These enhancements deliver high speed coupled with the best flexible logic allocation which results in the ability to make design changes without changing pin-outs. The XPLA3 architecture includes a pool of 48 product terms that can be allocated to any macrocell in the logic block. This combination allows logic to be allocated efficiently throughout the logic block and support as many product terms as needed per macrocell. In addition, there is no speed penalty for using a variable number of product terms per macrocell.

XPLA3 Software Tools

Software support for XPLA3 devices will be provided by Xilinx WebPOWERED software products which includes WebFITTERTM and WebPACKTM beginning the week of February 7, 2000. Both tools are free.  In addition, EDIF input for all major 3rd party software flows such as Cadence, Mentor, Viewlogic, Exemplar and Synopsys are supported.

More Information

XPLA3 Datasheets
XPLA3 Application Notes
XPLA3 Architecture Overview
XPLA3 Press Release
CoolRunner Customer Success Stories
CoolRunner FAQs
WebPOWERED Solutions
CPLD Software Solutions FAQs
3rd Party Programmer Support
Xilinx at Work in MP3 Player
XPLA2/Enhanced Family
