XILINX DELIVERS A NEW GENERATION OF CPLDS

Xilinx Delivers a New Generation of CPLDs

Xilinx has a programmable logic solution for virtually any CPLD design need, from high-speed PAL integration to those designs requiring real-time hardware changes using in-system programmable (ISP) devices.

XC9500 family - The New Standard in ISP

ISP is revolutionizing today's system designs by providing programming techniques for designing and developing systems with new, previously unattainable capabilities.

This ISP capability is the heart of the new XC9500 family. Designers can easily perform unlimited design iterations during the prototyping phase, extensive system in-board debugging, programming and testing during manufacturing, and field upgrades. The XC9500 devices provide the flexibility of 5V ISP with fast, guaranteed timing, the industry's best pin-locking architecture, a full JTAG compliant interface and 10,000 program/erase cycles.

Advanced 5V ISP CPLDs XC9500 Family
	High Performance
		- 5ns pin-to-pin speeds - 125 MHz maximum counter frequency
	36 to 288 macrocells
	Industry's best pin-locking architecture
	10,000 program/erase cycles
	Most complete IEEE 1149.1 JTAG
	3.3V/5V I/Os

The XC9500 family, with its advanced architecture, is fast becoming the new standard for all ISP CPLDs by providing new levels of features and flexibility for today's system designers.

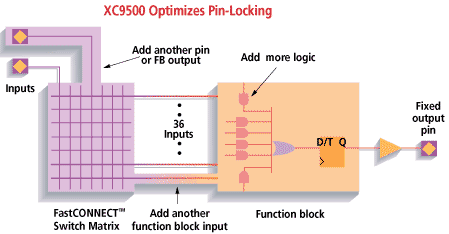

XC9500 Optimizes Pin-Locking Diagram
