Redefining the FPGA

Virtex™
Virtex Architecture Highlights
System-critical Features
System Timing Solution
Architecture Overview
Fully Digital Delay Locked Loops (DLL)
System Integration Solution
Vector-based Interconnect
System Memory Solution
Virtex Family Roadmap
Virtex SelectRAM+ Memory Hierarchy
System Interface Solution
Leading-Edge Software Solution
Summary

The Virtex family redefines the future of programmable logic by giving you next-generation FPGAs that break density and performance barriers while offering unprecedented system level integration. Virtex series devices range from 50,000 to 1,000,000 system gates at clock speeds up to 200 MHz, and include many new features that address system level design challenges, all at new, industry-leading prices.

Fully supported by the Alliance Series™ and Foundation Series™ software, the Virtex family is a complete solution, ready to meet the challenges of your next generation designs. Plus, our extensive library of SmartIP™ cores helps you quickly create very complex designs, with guaranteed results.

Virtex Architecture Highlights

Nine devices, from 50,000 to 1,000,000 system gates (1,728 to 27,648 Logic Cells)
Over 500 user I/O pins
Many package options, including leading-edge 1.0mm FinePitch™ ball grid arrays and 0.8mm chip scale packages
Leading edge 2.5-Volt, 0.22 micron, five-layer metal CMOS process
Fully 5-Volt tolerant I/Os
Timing-driven place and route tools allow compile times of 200,000 gates per hour on a 400 MHz Pentium II CPU

System-critical Features

Four, fully digital, Delay Locked Loops (DLLs) to aid system clock generation, synchronization, and distribution
Vector-based interconnect for fast, predictable, core-friendly routing across all densities
Supports 3 levels of memory hierarchy
SelectI/O™ technology supports multiple voltage and signal standards, simultaneously
Fully 66 MHz / 64 bit PCI and Compact PCI compliant

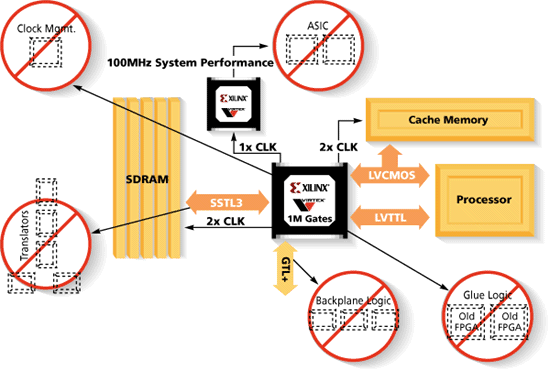

The Virtex Series Transforms FPGAs from Glue Logic to System Component

System Timing Solution

The Virtex series solves clock skew issues by allowing internal and external clock synchronization. With four Delay Locked Loops, your system's clock skew will be eliminated. You can get clock-to-output delays of less than three nanoseconds and a very substantial increase in system performance.
